Shapes Eligible for Quotation

Depending on the shape and dimensions, we may not be able to provide a quotation even for the following shapes. For details, please refer to the size regulations and design guidelines in this manual.
Shapes
1 Plate
Plate
2 Round shape
Round shape
3 L-shape
L-shape
4 Z-shape
Z-shape
5 convex-shape
convex-shape
6 U-shape
U-shape
7 Angle bending (L-shape)
SAngle bending (L-shape)
8 Multiple angle bending
Multiple angle bending
9 Tab
Tab
10 Cutout in bending
Cutout in bending
11 Partial bending with cutout
Partial bending with cutout
12 Cutout (rectangular)
Cutout (rectangular)
13 Cutout (U-shape)
Cutout (U-shape)
14 Notching
Notching
Shapes that are difficult to process (typical examples)
There may be cases where we are unable to manufacture the following shapes or others due to the processing limitations of our equipment. In such cases, meviy support will contact you.
1 Connected parts
2 Punching out characters
3 Gear shape
4 Pointed shape

Material, Surface Treatment, Size

Material: Steel Surface Treatment Thickness *1 Dimensions (Length, Width, Height) *2
Thickness ≤ 2.0 mm Thickness > 2.0 mm
EN 1.0330 equiv. (EN 1.0320 equiv. [hot coiled])
0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0 5–1200 10–1200
Powder Coating *3 0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0
Electroless Nickel Plating 0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0, 9.0 5–1200 *4 10–1200*4
Black Oxide
Trivalent Chromate (clear)
Trivalent Chromate (Black) 0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0 5–300 10–300
EN 1.0330 equiv. (Electrolytic Zinc Plating) Electrolytic Zinc Plating *5 0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2 5-1200 10-1200
  • EN 1.0330 equiv. (Galvanized)
Galvanized *5 1.6, 2.3
EN 1.0330 equiv. (for SHIM) *6 0.1, 0.2, 0.3, 0.5 Length: 5-850 Width: 5-350
EN 1.0038 equiv.
9.0, 10.0, 12.0, 16.0 20-1200
Electroless Nickel Plating 9.0
Black Oxide
Trivalent Chromate (clear)
Material: Stainless Steel Finishing Method Thickness *1 External Dimensions (Length, Width, Height) *2
Thickness ≤ 2.0 mm Thickness > 2.0 mm
  • EN 1.4301 equiv.
No.1 9.0 10-1200
10.0, 12.0 20-1200
2B 0.8, 1.0, 1.2, 1.5, 2.0, 2.5,  3.0, 4.0, 5.0, 6.0 5–1200 10–1200
Single-Sided #400-Grit Polished *7 0.8, 1.0, 1.2, 1.5, 2.0, 3.0
Single-sided hairline finish *7 *8 0.8, 1.0, 1.2, 1.5, 2.0, 3.0
  • EN 1.4016 equiv.
2B 0.8, 1.0, 1.2, 1.5, 2.0, 3.0
  • EN 1.4301 equiv. (for SHIM) *6
0.05, 0.1, 0.2, 0.3, 0.5, 0.8, 1.0 Horizontal (long-side) 5–850 Width (short-side) 5–300
Material: Aluminum Surface Treatment Thickness *1 External Dimensions (Length, Width, Height) *2
Thickness ≤ 2.0 mm Thickness > 2.0 mm
  • EN AW−5052 equiv.
0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0 5-120 10-1200
Anodized (clear) 0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0 5-1200 *4 10-1200 *4
Anodized (Black)
Anodize (matt black) 0.8 1.0 1.2 1.5 2.0 2.5 3.0 (4.0 5.0 6.0)*11 5-1100 *4 10-1100 *4
Material: Perforated Metal [EN 1.4301 equiv.] BA Hole Diameter × Hole Pitch *9 Thickness *1 External Dimensions (Length, Width, Height) *2
  • Perforated Plate (60° offset)
ø1 × 2p 0.8 30–900
ø2 × 3p 1.0
ø3 × 5p 1.0, 1.5
ø5 × 8p 1.0, 1.5
ø8 × 12p 1.5
Material Grade Color Plate Thickness *1 Dimension
PET Standard Transparent 3.0,5.0,8.0
  • Width: 10-1000
  • Length: 10-2000
  • Standard
  • or
  • Antistatic
  • Transparent
  • or
  • Brown smoke
3.0, 5.0
Acrylic
Standard Transparent 3.0,5.0,8.0,10.0
  • Standard
  • or
  • Antistatic
  • Transparent
  • or
  • Brown smoke
3.0, 5.0
  • PC
  • (Polycarbonate)
PVC
(Appendix Table) Size limit including surface treatment External Dimensions (Maximum)
Length Width Height
Electroless Nickel Plating 1200 800 300
Black Oxide
Trivalent Chromate (White)
EN AW−5052 equiv. (Without surface treatment) 1200 920 920
Anodized (White) 600 400
Anodized (Black)
Anodize (matt black) 1100 600 400

Types of Hole Machining

Types of Hole Machining
1 Through hole
Through hole
2 Slotted hole
Slotted hole
3 Rectangular hole
Rectangular hole
4 Tapped hole
Tapped hole
5 Friction/Flow-Drilled & Tapped hole
Friction/Flow-Drilled & Tapped hole
6 Countersunk hole
Countersunk hole
7 Press-fit nut (coarse), Weld nut (coarse)
Press-fit nut (coarse), Weld nut (coarse)

Material Properties

EN 1.0330 equiv.

EN 1.0330 equiv.

Cold-rolled steel sheet for use in general type pressing. Characterized by its high dimensional accuracy and attractive surface finish. The standard plate thickness is generally between 0.2 mm and 3.2 mm.
EN 1.0330 equiv. (Electrolytic Zinc Plating)

EN 1.0338 equiv.

This is a typical rolled steel for general structural use. It has high strength and is used in a wide range of applications such as construction and machinery. The surface is covered with a black oxide film and is also called black film material.
EN 1.0330 equiv. (Steel Plate Cold Commercial)

EN 1.0330 equiv. (SGCC)
(Steel Plate Cold Commercial)

Also used in building materials and has high corrosion resistance. Because this material has been pre-machined with a surface treatment, the cut surfaces will not be plated. However, this does afford faster delivery times. The surface is the color of silver.
EN 1.4301 equiv.(2B)EN 1.4301 equiv.(2B)

The most common type of stainless steel.
Provides excellent corrosion resistance, toughness, ductility, machinability and weldability. Used in a wide range of applications.
The surface has a slightly glossed finish.

Finish 2B:
This is the most common surface finish and is smoother than 2D finish. Adjustment rolling is applied to obtain the appropriate gloss. It is used for general purpose materials and building materials, and the majority of commercially available products have this finish.

EN 1.4301 equiv.(single-sided hairline finish)EN 1.4301 equiv.(single-sided hairline finish)

This is a surface finishing material characterized by long, continuous, hair-like polished grains. The surface is low-gloss to create a relaxed atmosphere. When shipped, a protective sheet (one side only) is attached.

HL (Hairline finish):
This creates a surface finish with long, continuous polishing marks. It uses an abrasive belt with an appropriate grain size to create long, narrow, continuous abrasive marks. This is the most common finishing method for building materials.

EN AW−5052 equiv.

EN AW−5052 equiv.

The most versatile aluminum alloy.
Offers excellent corrosion resistance and weldability and is used in a wide range of applications.
EN 1.0320 equiv. (hot coiled)

EN 1.0320 equiv. (hot coiled)

Hot-rolled soft steel sheet for general use and deep drawing.
The standard plate thickness is generally 1.2 mm or more. The material is commonly used in products with medium plate thicknesses.
EN 1.0330 equiv. (Electrolytic Zinc Plating)

EN 1.0330 equiv. (SECC)
Electrolytic Zinc Plating

A plated steel sheet with good corrosion resistance. The cut surfaces will not be plated. Because of the properties of the material, there may be some marks on the surface. The surface is gray.
EN 1.4301 equiv.(No.1)
    EN 1.4301 equiv.(No.1)
    After hot rolling and heat treatment, it is acid washed to remove black film and dirt from the surface. It features a matte, satin-finish surface.

    Finish No1:
    The result is a matte, whitish, non-glossy surface finish. After hot rolling, it is heat treated and pickled to remove dirt, etc.
EN 1.4301 equiv. (Single-Sided #400-Grit Polished)EN 1.4301 equiv. (Single-Sided #400-Grit Polished)

A material with a highly attractive surface finish commonly used for exterior covers. The surface has a mirror-like glossed finish onto which a small amount of polishing marks may remain. Protective sheets (one-side only) are affixed prior to shipment.

Finish single-sided polished:
The surface finish has a gloss similar to BA*1. This is a 2B material polished using a #400 grain size buff. Typical uses are building materials and kitchen supplies.


EN 1.4016 equiv.(2B)

EN 1.4016 equiv.(2B)

A common type of ferritic stainless steel.
Has a glossier surface finish than SUS304 and is characterized by its magnetic properties.

Finish 2B:
This is the most common surface finish and is smoother than 2D finish. Adjustment rolling is applied to obtain the appropriate gloss. It is used for general purpose materials and building materials, and the majority of commercially available products have this finish.

Perforated Metal (EN 1.4301 equiv.-BA); —60° Staggered Round Hole Type—
  • Perforated Metal (EN 1.4301 equiv.-BA); —60° Staggered Round Hole Type—
Perforated steel plates used in a wide range of applications, including in ventilation covers and filters. The material is straightened prior to shipment, but some warping may remain due to the properties of the material.

BA*1:

Creates a beautiful glossy surface that is almost mirror-like. After cold rolling, bright annealing is carried out, followed by adjustment rolling to further increase the gloss. It is used for automotive parts, household appliances, kitchen utensils and decorations.

Surface Treatments

Electroless nickel plating

Electroless Nickel Plating

A plating finish widely used in industrial applications.

Highly corrosion and abrasion resistant. Often used for precision equipment parts as the film thickness tends to be uniform. The color of the surface is white silver.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,6, 2,0, 2,3, 3,2, 4,5, 6,0, 9,0



Black oxide

Black Oxide

A plating finish commonly known as “blackening.”

Often used for precision equipment parts as the film is thin and dimensional changes are minimal. However, care must be taken as parts will rust quickly if the oil runs out.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,6, 2,0, 2,3, 3,2, 4,5, 6,0, 9,0



Trivalent chromate (white)

Trivalent Chromate (clear)

An environmentally friendly trivalent chromate plating finish. Provides excellent corrosion resistance and an attractive finish with a pale appearance.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,6, 2,0, 2,3, 3,2, 4,5, 6,0, 9,0

Trivalent chromate (black)

Trivalent Chromate (Black)

An environmentally friendly trivalent chromate plating finish.

Gives a black surface finish and good corrosion resistance.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,6, 2,0, 2,3, 3,2, 4,5, 6,0, 9,0

Anodized (white)

Anodized (clear)

A plating finish with good corrosion and abrasion resistance. The surface will have the color of aluminum.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,5, 2,0, 2,5, 3,0, 4,0, 5,0, 6,0

Anodized (black)

Anodized (black)

A plating finish with good corrosion and abrasion resistance. Gives a black surface finish.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,5, 2,0, 2,5, 3,0, 4,0, 5,0, 6,0



Electroless nickel plating

NEW

Matt black anodize

A surface-plating treatment commonly used in optical devices and decorative goods. It is black in color with a subdued, low-gloss effect. The base material has been chemically treated.

Thicknesses we can offer:

0,8, 1,0, 1,2, 1,5, 2,0, 2,5, 3,0, 4,0, 5,0, 6,0

Powder Coating Colors

  • The powder coating color values are in accordance with JPMA (Japan Paint Manufacturers Association). A reference value according to RAL, Munsell & CYMK is given for each color.
    Powder coating is used to achieve better corrosion resistance as well as a smoother surface or simply to color a part. The reference value for coating thickness is 50µ – 110µ.
    Check here which material and material thickness are available for powder coatings.

Black
  • N-10 (JPMA Color code)
    Reference value:
    9005 (RAL 95% match)
    N1 (Munsell)
    CYMK 21 12 0 91
Dark grey
  • N-30 (JPMA Color code)
    Reference value:
    7016 (RAL 97% match)
    N3 (Munsell)
    CYMK 10 6 0 74
White
N-95 (JPMA Color code)
Reference value:
9016 (RAL 97% match)
N9.5 (Munsell)
CYMK 0 1 2 4
Glossy



Off-white (Full gloss)
  • Y85-90B (JPMA Color code)
    Reference value
    9003 (RAL 96% match)
    5P9/1 (Munsell)
    CYMK 0 1 0 10
    Glossy
Off-white (Half gloss)
  • Y85-90B (JPMA Color code)
    Reference value:
    9003 (RAL 95% match)
    5P9/1 (Munsell)
    CYMK 0 1 0 12
Cream
  • 22-80D (JPMA Color code)
    Reference value:
    1015 (RAL 94% match)
    2.5Y8/2 (Munsell)
    CYMK 0 8 20 16
Yellow
  • 22-80X (JPMA Color code)
    Reference value:
    1021 (RAL 94% match)
    2.5Y8/14 (Munsell)
    CYMK 0 32 100 1
    Glossy
Light cream
  • 22-90B (JPMA Color code)
    Reference value:
    9001 (RAL 97% match)
    2.5Y9/1 (Munsell)
    CYMK 0 5 12 6
Old lace
  • 22-90D (JPMA Color code)
    Reference value:
    1015 (RAL 97% match)
    2.5Y9/2 (Munsell)
    CYMK 0 9 21 7
Light green
  • 37-90D (JPMA Color code)
    Reference value:
    9012 (RAL 90% match)
    7.5GY9/2 (Munsell)
    CYMK 4 0 13 11
    Glossy
Toyota cream
  • 441 (JPMA Color code)
    Reference value:
    1013 (RAL 97% match)
    10GY9/1 (Munsell)
    CYMK 0 4 14 11
    Glossy
Grey
  • 25-70B (JPMA Color code)
    Reference value:
    7032 (RAL 97% match)
    5Y7/1 (Munsell)
    CYMK 0 5 12 30
Creamy grey
  • 25-70D (JPMA Color code)
    Reference value:
    7032 (RAL 98% match)
    5Y7.2/1.4 (Munsell)
    CYMK 0 6 15 28
Light grey
  • 25-80B (JPMA Color code)
    Reference value:
    9002 (RAL 95% match)
    5Y8/1 (Munsell)
    CYMK 0 4 9 19
Off-pale grey
  • 27-85B (JPMA Color code)
    Reference value:
    9001 (RAL 97% match)
    7.5Y8.5/1 (Munsell)
    CYMK 0 3 8 12

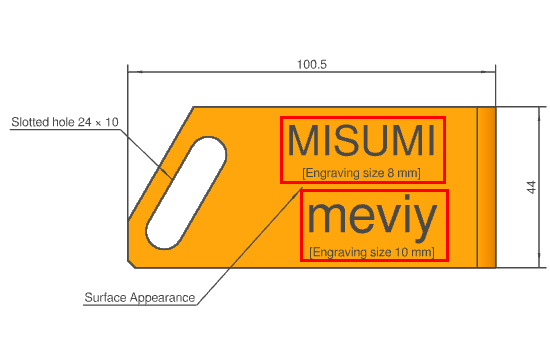

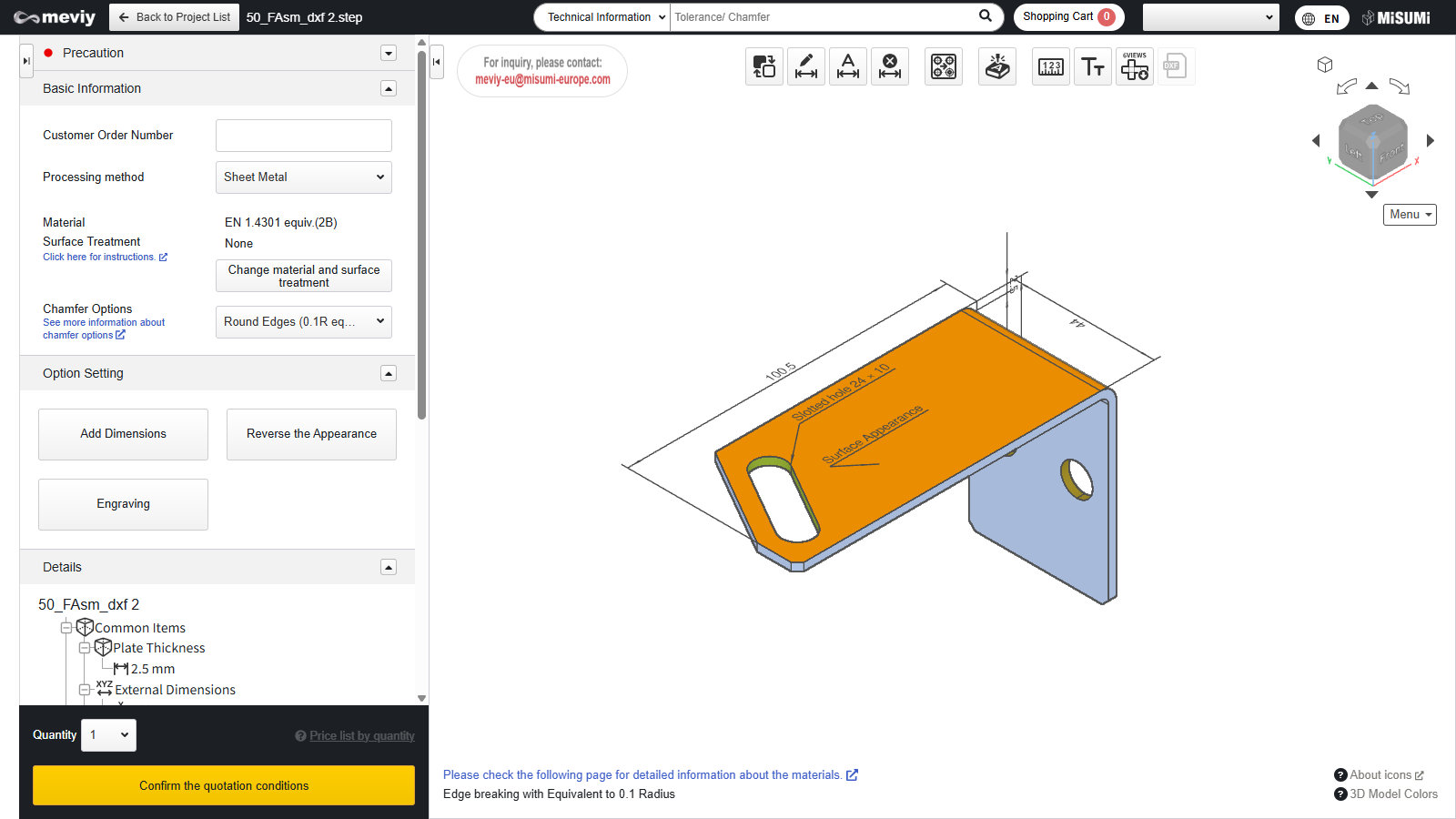

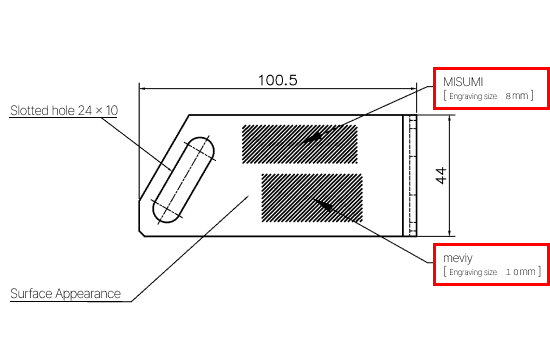

Engraving application range

For sheet metal, only the surface is machined. The finish may vary depending on the material and machine. For details, please check the “Engraving” topic.

Material: Steel Surface Treatment Plate thickness
EN 1.0330 (EN 1.0320 equiv. (hot coiled))  0.8  1.0  1.2  1.6  2.0  2.3  3.2  4.5  6.0
EN 1.0038 equiv.  9.0  10.0  12.0  16.0
Material: Stainless Steel Finish Plate thickness
EN 1.4301 equiv. 2B 0.8  1.0  1.2  1.5  2.0  2.5  3.0  4.0  5.0  6.0
EN 1.4016 equiv. 2B 0.8  1.0  1.2  1.5  2.0  3.0
EN 1.4301 equiv. No.1 9.0  10.0  12.0
*1 The plate thickness tolerance is ±10% (reference value).

Character size

  • Half-width alphanumeric characters and some symbols (+-. #$%&'()=*:? /_~) can be freely entered.
  • Line feed and space input are also supported.
  • Font (font, spacing) and line spacing cannot be specified.

Character size

Due to variations in font size definitions, there may be deviations from the specified size depending on the content.

Definition of Font Size

Example) In case of a default character size of 5.0 mm
Character size
Default value
(*)
Nominal Size 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 17.5 20.0 22.5 25.0 27.5 30.0
Measured value A 2.80 3.74 4.79 5.60 6.54 7.47 8.41 9.34 10.27 11.2 12.14 13.08 14.01 16.34 18.68 21.01 23.37 25.68 28.01
Measured value g 3.01 4.02 5.02 6.26 7.03 8.03 9.04 10.04 11.05 12.52 13.05 14.06 15.07 17.39 20.08 22.36 25.11 27.62 30.13
Measured value x 2.10 2.80 3.51 4.21 4.91 5.61 6.31 7.01 7.71 8.42 9.11 9.81 10.52 12.27 14.02 15.77 17.53 19.28 21.03
  • *Depending on the material and character, 3 to 5.0 mm can cause damage to the characters.
  • *Size is only a reference value. Dimensional accuracy is not guaranteed. Depending on the text content, there may be cases where the size differs from the specified size.

Engraving angle

  • Turn counterclockwise in 45 degree steps.
  • These are reference values only and accuracy is not guaranteed by quality assurance.
Initial value 0 degree (end-face reference)
Angular pitch (standard value) 0 to 360 degrees (45 degree intervals)
Engraving angle

Feed bending (FR bending) – Overview materials and sizes

  • As the part is processed by feed bending (FR bending), stamp marks will be visible on the bent part.
    Details can be found under Bending Specifications for details.

  • If you require bending processing without stamp marks, please enter this in the additional information in the 3D viewer and request a manual quotation.
Material: Steel Surface Treatment Thickness *1 External Dimensions (Length, Width, Height) *2
Thickness ≤ 2.0 mm Thickness > 2.0 mm
EN 1.0330 equiv.
[EN 1.0320 equiv. (hot coiled)]
0.8 1.0 1.2 1.6 2.0 2.3 3.2 5–1200 10–1200
Powder Coating *3
Electroless Nickel Plating 5–1200 *4 10–1200 *4
Black Oxide
Trivalent Chromate (clear)
Trivalent Chromate (Black) 5–300 10–300
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
Electrolytic Plating *5 0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2 5–1200 10–1200
  • EN 1.0330 equiv. (Galvanized)
Galvanized *5 1.6, 2.3
Material: Stainless Steel Finishing Method Thickness *1 External Dimensions (Length, Width, Height) *2
Thickness ≤2.0 mm Thickness >2.0 mm
  • EN 1.4301 equiv.
2B 0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0 5–1200 10–1200
Single-Sided #400-Grit Polished *6 0.8, 1.0, 1.2, 1.5, 2.0, 3.0
  • EN 1.4016 equiv.
2B
Material: Aluminum Surface Treatment Thickness *1 External Dimensions (Length, Width, Height) *2
Thickness ≤2.0 mm Thickness >2.0 mm
  • EN AW−5052 equiv.
0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.5, 3.0 5–920 10–920
Anodized (clear) 5–920*4 10–920 *4
Anodized (Black)
Material: Perforated Metal Hole Diameter × Hole Pitch *7 Open Area Ratio Thickness *1 External Dimensions (Length, Width, Height) *2
  • EN 1.4301 equiv.-BA 60° Staggered Round Hole Type
ø1 × 2p 22.60% 0.8 30–900
ø2 × 3p 40.30% 1.0
ø3 × 5p 32.70% 1.0, 1.5
ø5 × 8p 35.40%
ø8 × 12p 40.20% 1.5
    • *1 The thickness tolerance is ±10% (reference value).
    •
    • *2 The maximum and minimum dimensional values are limited by the
      shape of the bend.
    •
    • *3 Select a paint color from the table (Appendix Table).
    •
    • *4 The maximum length and width dimensions (Appendix Table) may vary depending on the surface treatment.
  •
    • *5 The machining surface will not be plated as it is a pre-treatment material.
    •
    • *6 Protective sheets (one-side only) affixed.
    •
  • *7 See figure below for hole diameter and hole pitch standards.
  • However, the hole pitch orientation can be set to any value.
(Appendix Table) Maximum Sizes for Each Surface Treatment External Dimensions (Maximum)
Length Width Height
Electroless Nickel Plating 1200 800 300
Black Oxide
Trivalent Chromate (clear)
EN AW−5052 equiv. (Without surface treatment) 1200 920 920
Anodized (clear) 600 400
Anodized (Black)

Shim Plates

  • For the selection of shims, certain conditions must be met in terms of shaping elements, material and thickness of the part. Detailed specifications can be found below.

Available Shapes for Shim Plates

Available: Cutout/Through Holes/Free Form Hole

Not Available: Bended Shims

Available: Cutout/Through Holes (Rectangular Holes, Slotted Holes, etc.)

Not Available: Specific Holes

Materials / Plate Thicknesses for Shim Plates

  • The tolerance varies depending on the thickness and the material.
  • Other stainless steels are available with a plate thickness of 0.8 mm or 1.0 mm. 1.4301 equiv. (H) has a higher precision. (The tolerance of the plate thickness for standard materials is ±10 % [reference value only]).
SteelThicknessTolerance
EN 1.0330 equiv.0.1±0.03
0.2±0.03
0.3±0.04
0.5±0.06
Stainless steelThickness Tolerance
EN 1.4301 equiv.(H) 0.05 ±0.005
0.1 ±0.02
0.2 ±0.03
0.3 ±0.035
0.5 ±0.04
0.8 ±0.04
1.0 ±0.05

Parts Available for Clear Resin

*The delivery date will be extended depending on the quantity. Please check the date displayed on the screen for the confirmed delivery date.

Clear resin panel parts, used for equipment covers, etc. are available.
Certain conditions regarding the shape elements, material and thickness of the part must be met in order to select clear resin. Check below for detailed specifications.

Available: Through Holes, Rectangular Holes and Freeform Holes

Not Available: Bending

Available: Cutouts, Countersunk Holes and Slotted Holes

Not Available: Tapped Holes

Materials / Plate Thicknesses Eligible for Clear Resin

  • Each material is available in two grades and two colors, so please choose the material that best suits your needs.
Clear ResinGradeColorLight Transmittance *1Operating Ambient Temperature *1Thickness *2
PET
(Polyethylene terephthalate)
StandardClear87%-15 to 55℃3.0  5.0 8.0
Brown Smoke28%3.0 5.0
Anti-StaticClear77%
Brown Smoke30%
AcrylicStandardClear93%-40 to 65℃3.0 5.0 8.0 10.0
Brown Smoke28%3.0 5.0
Anti-StaticClear87%
Brown Smoke25%
PolycarbonateStandardClear89%-40 to 120℃3.0 5.0
Brown Smoke35%
Anti-StaticClear86%
Brown Smoke32%
PVC
(polyvinyl chloride)
StandardClear83%-10 to 60℃3.0 5.0
Brown Smoke27%
Anti-StaticClear77%
Brown Smoke30%
  • *1 This is an approximate value only and should not be considered a guaranteed value.
  • *2 The plate thickness tolerance is ±0.2 with a thickness of 3.0, and ±0.3 with a thickness of 5.0.

Clear Resin Materials

Material color may vary between orders based on availability.

Hole Identification Specifications

  • After CAD data is uploaded to meviy, it is internally converted into a neutral file format. During this conversion, the hole type information (tapped hole, countersunk hole, etc.) is lost.
  • As a default hole recognition setting, hole diameter and shape features are detected and compared to the hole information database to infer the hole information that will be carried over to the meviy platform.

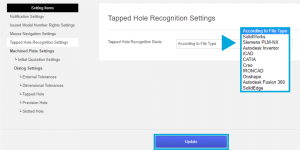

However, Solidworks users can use a new function that allows you to change user settings to directly transfer original hole information from CAD data to meviy.
Please click here for more information.

Tapped Hole Identification and Selectable Sizes

Tapped Hole Identification

  • Hole diameter information in meviy’s hole information database is registered corresponding to the nominal diameters of tapped holes from each uploadable file extension. Detected hole diameters are checked against the table below (Table 1).
  • *If the detected diameter does not match any entry in the table, the hole will be treated as a through hole. However, you can change the hole type or nominal diameter when configuring the quote settings.
  • *If a diameter corresponds to multiple nominal diameters (below, 5.00 mm), the larger nominal diameter (M6) will be prioritized and selected.
Table 1) With Default Settings: Table of Hole Diameters Corresponding to Tapped Hole Identification by File Extension
Tapped Hole Nominal Diameter File Extension
  • STEP (.step / .stp)
  • Parasolid (.x_t/.x_b/.xmt /.xmt_txt)
  • ACIS (.sat/.sab)
  • JT (.jt)
  • PRC (.prc)
  • I-deas (.arc/.unv)
  • SOLIDWORKS(.sldprt)
  • Siemens PLM-NX(.prt)
  • Creo (.neu/.prt/.xpr)
  • Solid Edge (.par/.pwd)
  • Pro/ENGINEER (.prt/.neu/.xpr)
  • Autodesk Inventor(.ipt)
  • CATIA V5 (.CATPart)
iCAD SX (.icd)
M2 1.57 1.60 1.62 2.00 1.60 1.57 2.00
M2.5 2.01 2.05 2.08 2.50 2.05 2.01 2.50
M3 2.46 2.50 2.53 3.00 2.50 2.46 3.00
M4 3.24 3.30 3.33 4.00 3.30 3.24 4.00
M5 4.13 4.20 4.23 5.00 4.20 4.13 5.00
M6 4.92 5.00 5.04 6.00 5.00 4.92 6.00
M8 6.65 6.75 6.78 6.80 8.00 6.80 6.65 8.00
M10 8.38 8.50 8.53 10.00 8.50 8.38 10.00
M12 10.11 10.20 10.25 10.27 10.30 10.20 10.11 12.00
M14 11.84 12.00 12.02 12.10 12.00 11.84 14.00
M16 13.84 14.00 14.02 16.00 14.00 13.84 16.00
Table 2) With Tapped Hole Identification Settings: Table of Hole Diameters Identified as Tapped Holes for Each Specified CAD Package
Tapped Hole Nominal Diameter Tapped Hole Identification Settings
SOLIDWORKS (Select from 2 types) Siemens PLM-NX Creo Solid Edge Onshape Autodesk Inventor CATIA iCAD SX IronCAD Autodesk Fusion360
A Type (*1) B Type (*2)
M2 1.60 2.00 1.60 1.56 2.00 1.60 1.62
M2.5 2.05 2.50 2.05 2.01 2.50 2.05 2.08
M3 2.50 3.00 2.50 2.46 3.00 2.50 2.53
M4 3.30 4.00 3.30 3.24 4.00 3.30 3.33
M5 4.20 5.00 4.20 4.13 5.00 4.20 4.23
M6 5.00 6.00 5.00 4.92 6.00 5.00 5.04
M8 6.80 8.00 6.80 6.65 8.00 6.80 6.78
M10 8.50 10.00 8.50 8.38 10.00 8.50 8.53
M12 10.20 12.00 10.20 10.11 12.00 10.2 10.27
M14 12.00 14.00 12.00 11.84 14.00 12.00 12.02
M16 14.00 16.00 14.00 13.84 16.00 14.00 14.02

*1 When the SOLIDWORKS hole options selected are “Tap drill diameter” or “Cosmetic threads.”

*2 When the SOLIDWORKS hole option selected is “Remove threads.”

Tapped Hole Size Selection

Tapped holes cannot be selected for perforated metals, shim plate materials (SPCC [for shims] or SUS304(H) [for shims]) or clear resin.

Material Plate Thickness Tapped Hole Diameter (*1)
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
0.8
1.0 M2 M2.5 M3
1.2 M2 M2.5 M3
1.6 M2 M2.5 M3 M4 M5
2.0 M2 M2.5 M3 M4 M5 M6
2.3 M2 M2.5 M3 M4 M5 M6
3.2 M2(*2) M2.5 M3 M4 M5 M6 M8
4.5 M3 M4 M5 M6 M8 M10
6.0 M4 M5 M6 M8 M10
9.0 M6 M8 M10 M12 M14 M16
10.0 M6 M8 M10 M12 M14 M16
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
0.8
1.0 M2 M2.5 M3
1.2 M2 M2.5 M3
1.5 M2 M2.5 M3 M4
1.6(*3) M2 M2.5 M3 M4 M5
2.0 M2 M2.5 M3 M4 M5 M6
2.5 M2(*4) M2.5 M3 M4 M5 M6
3.0 M2(*4) M2.5 M3 M4 M5 M6 M8
4.0 M3 M4 M5 M6 M8 M10
5.0 M3(*3) M4 M5 M6 M8 M10
6.0 M4(*3) M5 M6 M8 M10
9.0 M6 M8 M10 M12 M14 M16
10.0 M6 M8 M10 M12 M14 M16
12.0 M6 M8 M10 M12 M14 M16
  • *1 M2 M2.5 does not apply to EN 1.0330 equiv. (EN 1.0320 equiv. (hot coiled)) (without surface treatment) and stainless steel materials.
  • *2 M2 is EN 1.0330 equiv. (EN 1.0320 equiv. (hot coiled)) (Trivalent chromate black) and EN 1.0330 equiv. (electrolytic zinc plating) only
  • *3 Only available for EN AW−5052 equiv. Aluminum Alloy.
  • *4 EN AW−5052 equiv. is not applicable.

Basic Modeling Rules

Modeling Rules: Bending Example
The sheet metal thickness must be uniform.

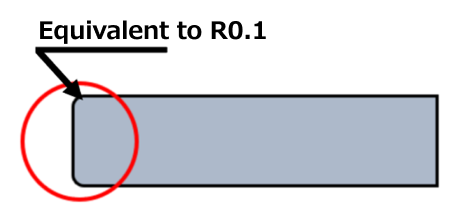

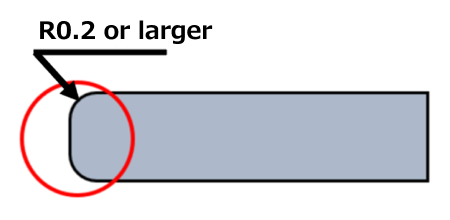

  • Design inner radius (Rinner) of a bend as follows: 0 ≤ Inner radius ≤ ThicknessDesign outer radius (Router) as follows:Inner radius Rinner + Thickness
  • *Automatic quotation is not possible for models with non-uniform thickness. The model modification function can be used to fix these models and may allow automatic quotation.
    For more information, please click here.

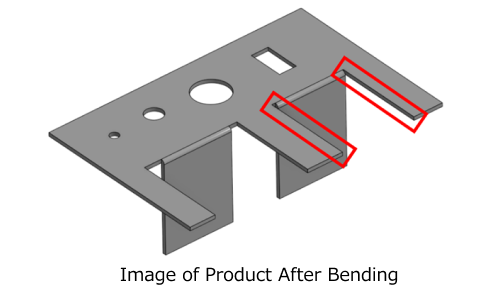

Feed bending (FR bending)
  • The inner bending radius should be 10 or more. The outer bending radius should be inner radius + thickness.
  • Please refer to the following section for the range of the bending radius.

Thickness Inner radius Rmin Outer radius Rmax
0.8 10 150
1.0
1.2
1.5
1.6
2.0 10 (Steel Rmin=15)
2.3 15
2.5 10
3.0 30
3.2

Countersink Modeling and Selectable Sizes

Modeling Rules for Countersunk Holes

When a conical shape element is detected, it will be identified as a countersink.
Modeling Rules Example
Model the angle of the conical shape to be 90°. The ratio between the outer hole diameter (D) and inner hole diameter (d) must be as follows: If d ≤ 4.0 mm, the ratio must be above 1.4, If d > 4.0 mm, the ratio must be above 1.7. Example

Countersunk Hole Identification

The countersunk hole is recognized through two steps below.

STEP1

  • The pilot hole diameters for countersunk holes for each CAD package are registered in the meviy hole information database. Detected hole diameters will be checked against this during modeling (see table below).

Countersunk Hole Nominal Diameter File Extension
STEP (.step / .stp) Parasolid (.x_t/.x_b/.xmt /.xmt_txt) ACIS (.sat/.sab) JT (.jt) PRC (.prc) I-deas (.arc/.unv) Autodesk Inventor (.ipt) CATIA V5 (.CATPart) Siemens PLM-NX (.prt) *1 Creo (.neu/.prt/.xpr) Solid Edge (.par/.pwd) iCAD SX (.icd) SOLIDWORKS (.sldprt) Siemens PLM-NX (.prt) *2
M3 3.20 3.30 3.40 3.58 3.6 4.00 3.20 3.30 3.40
M4 4.30 4.40 4.50 4.60 4.68 4.80 4.30 4.40 4.50
M5 5.30 5.50 5.80 6.00 6.18 6.50 5.30 5.50 5.50
M6 6.40 6.60 6.82 7.00 6.40 6.60 6.60
M8 8.40 8.54 9.00 9.22 10.00 8.40 8.54 9.00
M10 10.50 10.62 11.00 11.27 12.00 10.50 10.62 11.00
M12 13.00 13.50 14.50 13.00 13.50
M14 15.00 15.50 16.50
M16 17.00 17.50 18.50 17.00 17.50
  • *1 Pilot hole diameter for Siemens PLM-NX JIS model
  • *2 Pilot hole diameter for Siemens PLM-NX ISO model

STEP2

Once the countersunk hole is recognized according to the aforementioned modeling rules, the nominal diameter is determined according to the pilot hole diameter range. (Table below)

If the detected hole diameter does not match any of the entries on the list of pilot hole diameters, the hole is treated as a through hole (or tapped hole).

However, you can change the hole type or hole diameter when configuring the quote settings.

Countersunk diameter Pilot hole(d) range Example
M3 3.2≦d≦4.0 Example
M4 4.3≦d≦4.8
M5 5.3≦d≦6.5
M6 6.3≦d≦7.0
M8 8.4≦d≦10.0
M10 10.5≦d≦12.0
M12 13.0≦d≦14.5
M14 15.0≦d≦16.5
M16 17.0≦d≦18.5

Countersunk Hole Size Selection

  • Available sizes vary depending on material and plate thickness. See the table below for details.
  • Countersunk holes cannot be selected for perforated metals or shim plate materials (SPCC [for shims] or SUS304(H) [for shims]).
Material Plate Thickness Countersunk Hole Bolt Nominal Diameter
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
2.0 M3
2.3 M3
3.2 M3 M4 M5
4.5 M3 M4 M5 M6
6.0 M3 M4 M5 M6 M8 M10
9.0 M5 M6 M8 M10
10.0 M5 M6 M8 M10 M12 M14 M16
12.0 M5 M6 M8 M10 M12 M14 M16
16.0 M5 M6 M8 M10 M12 M14 M16
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
2.0 M3
2.5 M3
3.0 M3 M4 M5
4.0 M3 M4 M5 M6
5.0 M3 M4 M5 M6 M8
6.0 M3 (*1) M4 M5 M6 M8
9.0 M5 M6 M8 M10 M12 M14 M16
10.0 M5 M6 M8 M10 M12 M14 M16
12.0 M5 M6 M8 M10 M12 M14 M16
PET Acrylic Polycarbonate PVC 3.0 M3 M4 M5
5.0 M3 M4 M5 M6 M8
8.0 (*2) M3 M4 M5 M6 M8 M10
10.0 (*3) M3 M4 M5 M6 M8 M10
  • *1 Only available for A5052 Aluminum Alloy.
  • *2 Only available in PET & Acrylic
  • *3 Only available in Acrylic

Friction Drilled/Tapped Holes

Friction Drilled/Tapped Holes Modeling Rules

When a cylindrical flange shape element is detected, it will be identified as a friction drilled/tapped hole.

Modeling Rules Example
The inner diameter (d) should follow the same rules as for Tapped Hole Identification described above. Model the flange height (h) and thickness (t) to be less than or equal to the plate thickness. Example

Friction Drilled/Tapped Hole Size Selection

Friction drilled/tapped holes cannot be selected for perforated metals, shims or resin.

MaterialThicknessFriction Drilled/Tapped Hole Diameter(*1)
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
0.8  M3M4
1.0M2M2.5M3M4M5
1.2M2M2.5M3M4M5
1.6M2M2.5M3M4M5
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.
  • EN AW−5052 equiv.
0.8  M3M4
1.0  M3M4M5
1.2  M3M4M5
1.5  M3M4M5

*1 M2 and M2.5 are limited to EN 1.0330 equiv. (electrolytic zinc plating) and EN 1.0330 equiv.  (galvanized).

Modeling Rules for Keyhole Type Holes

When a keyhole shaped element is detected, it will be identified as a keyhole type hole.
Modeling Rules Example
Model the keyhole type hole to meet all of the following conditional expressions: d1 ≥ 4.5, d2 ≥ [2 × d1 + 2], h > 0 Example

Modeling Rules for Perforated Metal

Modeling Rules Example
When requesting a quote for perforated metal parts, model the part using either no holes or only through holes (mounting holes). (There is no need to model the staggered/lattice-like hole patterns characteristic of perforated metals.) Hole Identification Specifications

Selectable nut sizes

Upper limit of the nut's pilot hole diameter

  • On meviy, when you would select nut mounting, please change the hole information indication for mounting holes.
  • You can select press-fit, weld (spot), or weld (arc) as the mounting method.
  • However, multiple mounting methods cannot be used on the same model.
  • The nominal diameters which can be selected depend on the hole diameter of the mounting hole.
  • The upper limit of hole diameter is specified for each nominal diameter. Please refer to the table below.
Press-fit nut
Press-fit nut nominal diameter Upper limit of the pilot hole diameter (d) Example
M3 d ≦ 5.5
M4 d ≦ 7.0
M5 d ≦ 8.0
M6 d ≦ 10.0
M8 d ≦ 13.0
Weld (spot) nut and weld (arc) nut
Weld nut nominal diameter Upper limit of the pilot hole diameter (d) Example
M4 d ≦ 11.0
M5 d ≦ 11.0
M6 d ≦ 13.0
M8 d ≦ 15.0
M10 d ≦ 17.0
M12 d ≦ 19.0

Maximum number of nuts which can quote automatically

  • As a condition of the automatic quotation, there is a limit that the number of nuts mounted per model. Please refer to the table below.
  • If the number of nuts is more than the limit, meviy support can provide a quotation (request a manual quotation).
  • If you wish to use weld (arc) nuts, please request a quotation from meviy support regardless of the number of nuts.
Types of nut Maximum number of nut which can automatic quotation per model
Press-fit nut 12
Weld (spot) nut 12

Select the size of nut

  • Selectable sizes vary by material and thickness. Please refer to the table below.
  • Nut mounting cannot be selected for perforated metal, shim plates (EN 1.0330 equiv. & EN 1.4301 equiv.) and resin.
Press-fit nut
Material Thickness Press-fit nut nominal diameter
  • EN 1.0330 equiv. (EN 1.0320 equiv. (hot coiled))
  • EN 1.0330 equiv.
0.8 M3 M4
1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.6 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.3 M3 M4 M5 M6 M8
3.2 M3 M4 M5 M6 M8
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.5 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.5 M3 M4 M5 M6 M8
3.0 M3 M4 M5 M6 M8
EN AW−5052 equiv. 0.8 M3 M4
1.0 M3 M4 M5 M6
1.2 M3 M4 M5 M6
1.5 M3 M4 M5 M6
1.6 M3 M4 M5 M6
2.0 M3 M4 M5 M6 M8
2.5 M3 M4 M5 M6 M8
3.0 M3 M4 M5 M6 M8
Weld (spot) nut
Material Thickness Weld (spot) nut nominal diameter
  • EN 1.0330 equiv. (EN 1.0320 equiv. (hot coiled))
  • EN 1.0330 equiv.
0.8 M4 M5 M6
1.0 M4 M5 M6
1.2 M4 M5 M6 M8
1.6 M4 M5 M6 M8 M10 M12
2.0 M4 M5 M6 M8 M10 M12
2.3 M4 M5 M6 M8 M10 M12
3.2 M4 M5 M6 M8 M10 M12
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv. equiv.
0.8 M4 M5 M6 M8 M10 M12
1.0 M4 M5 M6 M8 M10 M12
1.2 M4 M5 M6 M8 M10 M12
1.5 M4 M5 M6 M8 M10 M12
2.0 M4 M5 M6 M8 M10 M12
2.5 M4 M5 M6 M8 M10 M12
3.0 M4 M5 M6 M8 M10 M12
4.0 M4 M5 M6 M8 M10 M12
5.0 M4 M5 M6 M8 M10 M12
6.0 M4 M5 M6 M8 M10 M12

Hanging Holes for Plating/Painting

When uploading a part in meviy and selecting a plating or painting, please note that a small hole, which should be between Ø 4 to Ø 5.2 mm, needs be added in one corner of your part so that the part can be manufactured with the desired plating or painting.

If the part exceeds a length of 420mm or the weight of 8 kg, please make sure that at least 2 holes are added to the 3D CAD model to hang the part.



Depending on the size and shape of the part, additional holes may need to be added for hanging.



If the part cannot be offered automatically, you are welcome to contact us to find a solution.

Range of Machining Limits

    The limits for machining and the size ranges are defined for each standard part. Make sure that any models you create fall within the standard range.
  • *Values may differ from those listed depending on surface treatment, shape, and processing conditions.

Minimum Distance Between a Hole and an Edge or Between Two Holes

Machining Limits, Size Range Example
Plate Thickness Limita Limitb Limitc
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
  • Perforated Metal
  • —60° staggered round hole type—
0.8 0.8 0.8 0.8 0.5 11.5 3.0
1.0 1.0 1.0 1.0
1.2 1.2 1.2 0.6
1.5 1.5 1.5 0.7
1.6 1.6 0.8
2.0 2.0 2.0 1.0
2.3
2.5 2.5 1.2
3.0 3.0 1.5
3.2
4.0 4.0 2.0
4.5 2.2
5.0 5.0 2.5
6.0 6.0 6.0 3.0
9.0 9.0 4.0
10.0 10.0 5.0
12.0 12.0 6.0
16.0 8.0
Plate Thickness Limita Limitb Limitc
  • EN 1.0330 equiv. (for Shims)
0.1 1.0
0.2
0.3
0.5
Plate Thickness Limita Limitb Limitc
  • EN 1.4301 equiv. (H) (for Shims)
0.05 0.5
0.1
0.2
0.3
0.5
0.8 0.8
1.0 1.0
Plate Thickness Limita Limitb Limitc
PET Acrylic Polycarbonate PVC
3.0 3.0 3.0 3.0 2.0
5.0 5.0 5.0 5.0
  • Example
  • *The distance between a tapped hole and the edge or between tapped holes is determined by the minimum distance from the outermost diameter of the tapped hole.
  • *The distance between friction drilled/tapped holes is determined from the minimum distance from the center of the hole.
  • *The distance between a countersunk hole and the edge or between countersunk holes is determined by the minimum distance from the outermost diameter of the counterbored part.

Minimum Diameter for Through Holes Minimum Width of Rectangular/Slotted Holes

Machining Limits, Size Range Example
Plate Thickness Limit d Limit w1 Limit w2
  • EN 1.0330 equiv. EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
Perforated Metal —60° staggered round hole type—
0.8 0.8 0.8 0.8 0.4 0.8 0.8
1.0 1.0 1.0 1.0 0.5 1.0 1.0
1.2 1.2 1.2 0.6 1.2 1.2
1.5 1.5 1.5 0.7 1.5 1.5
1.6 1.6 0.8 1.6 1.6
2.0 2.0 2.0 1.0 2.0 2.0
2.3 1.1 2.3 2.3
2.5 2.5 1.2 2.5 2.5
3.0 3.0 1.5 3.0 3.0
3.2 1.6 3.0 3.0
4.0 4.0 2.0 3.0 3.0
4.5 2.2 4.0 4.0
5.0 5.0 2.5
6.0 3.0
6.0 6.0 6.0 6.0
9.0 9.0 4.5
10.0 10.0 5.0
12.0 12.0 6.0 8.0 8.0
16.0 8.0 10.0 10.0
Plate Thickness Limit d Limit w1 Limit w2
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
0.8 1.6 3.0 3.0
1.0 1.6
1.2 2.0
1.5 2.5
2.0 4.0 4.5 4.5
3.0 4.5
Plate Thickness Limit d Limit w1 Limit w2
EN 1.0330 equiv. (for Shims) EN 1.4301 equiv.(H) (for Shims)
0.05 0.3 0.5 0.5
0.1 0.1
0.2 0.2
0.3 0.3
0.5 0.5
0.8 1.0 0.8 0.8
1.0 1.0 1.0 1.0
Plate Thickness Limit d Limit w1 Limit w2
PET Acrylic Polycarbonate PVC
3.0 3.0 3.0 3.0 1.5 3.0 7.0
5.0 5.0 5.0 5.0
Example

Minimum Size of Cutout Shape

Machining Limits, Size Range Example
Material Plate Thickness Minimum Value Limit Value
Cutout Width/Depth A
EN 1.0330 equiv. (for shims) 0.1 0.5 0.3
0.2
0.3
0.5 0.8 0.4
EN 1.4301 equiv.(H) (for shims) 0.05 0.5 0.3
0.1
0.2
0.3
0.5 0.8 0.4
0.8 1.2 0.5
1.0 1.5
PET 3.0 7.0
5.0
Acrylic 3.0
5.0
Polycarbonate 3.0
5.0
PVC 3.0
5.0
Example

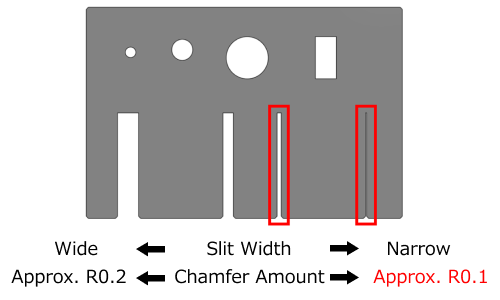

Minimum Slit Width (when the part is unfolded).

Machining Limits, Size Range Example
Plate Thickness Minimum Slit Width (when the part is unfolded).
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
EN AW−5052 equiv.
  • Perforated Metal
  • —60° staggered round hole type—
Guaranteed Width a Limit a
0.8 0.8 0.8 0.8 0.8 0.5
1.0 1.0 1.0 1.0 1.0 0.5
1.2 1.2 1.2 1.2 0.5
1.5 1.5 1.5 1.5 0.5
1.6 1.6 1.6 0.5
2.0 2.0 2.0 2.0 0.5
2.3 2.3 0.8
2.5 2.5 2.5 0.8
3.0 3.0 3.0 1.5
3.2 3.2 1.6
4.0 4.0 4.0 2.0
4.5 4.5 2.3
5.0 5.0 5.0 2.5
6.0 6.0 6.0 6.0 3.0
9.0 9.0 9.0 4.5
10.0 10.0 10.0 5.0
12.0 12.0 12.0 6.0
16.0 16.0 8.0
  • Folded Part View
  • Folded Part View
  • Unfolded Part View
  • Unfolded Part View
  • Detailed Slit View
  • Detailed Slit View

Minimum Bending Height : Normal Bending

Machining Limits, Size Range Example
Material Plate Thickness Limit h
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
0.8 4.2
1.0 4.3
1.2 5.5
1.6 6.8
2.0 8.2
2.3 9.4
3.2 13.3
4.5 17.4
6.0 23.5
9.0 33.5
10.0 46.5
12.0 62.0
16.0 88.5
EN1.0330 equiv. (Electrolytic Zinc Plating) 0.8 4.2
1.0 4.3
1.2 4.5
1.6 5.8
2.0 7.0
2.3 8.3
3.2 11.1
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
0.8 4.2
1.0 4.3
1.2 4.5
1.5 6.0
2.0 7.1
2.5 11.3
3.0 11.5
4.0 17.2
5.0 23.5
6.0 25.0
9.0 39.0
10.0 46.5
12.0 62.0
EN AW−5052 equiv. 0.8 4.2
1.0 4.3
1.2 5.5
1.5 6.0
1.6 6.0
2.0 8.2
2.5 10.0
3.0 13.3
4.0 17.2
5.0 27.0
6.0 28.0
Perforated Metal —60° staggered round hole type— 0.8 4.2
1.0 4.3
1.5 6.0
Example

Minimum Bending Height : R-bend shape

Machining Limits, Size Range Example
Material Plate Thickness Limit h
EN 1.0330 equiv. 0.8 2.6
1.0 2.3
1.2 3.1
1.6 3.6
2.0 4.2
2.3 4.8
3.2 6.9
EN1.0330 equiv. (Electrolytic Zinc Plating) 0.8 2.6
1.0 2.3
1.2 2.1
1.6 2.6
2.0 3.0
2.3 3.7
3.2 4.7
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4016 equiv.(2B)
0.8 2.6
1.0 2.3
1.2 2.1
1.5 3.0
2.0 3.1
2.5 6.3
3.0 5.5
EN AW−5052 equiv. 0.8 2.6
1.0 2.3
1.2 2.1
1.5 3.0
1.6 2.8
2.0 3.1
2.5 5.0
3.0 5.5
Perforated Metal —60° staggered round hole type— 0.8 2.6
1.0 2.3
1.5 3.0
Example

The minimum bending height

Machining Limits, Size Range Example
Material Plate Thickness Surface Treatment
None
  • Paint
  • Electroless Nickel Plating
  • Black oxide
  • Trivalent Chromate (Clear)
  • Trivalent Chromate (Black)
  • Electrolytic Galvanized
  • Hot Galvanaized
Limit a
  • EN 1.0330 equiv./EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.0330 equiv.
0.8 8.2 6.8 7.1
1.0 8.5 6.8 7.5
1.2 9.9 9.0 8.4
1.6 11.6 9.5 9.2
2.0 13.1 13.5 11.0
2.3 13.7 14.0 11.6
3.2 19.4 22.0 15.4
4.5 28.0 28.0 20.0
6.0 37.3 32.0 30.0
9.0 56.8 57.0
10.0 75.1
12.0 91.0
16.0 158.0
Material Plate Thickness Finishing Method
  • 2B
  • Single-Sided #400-Grit Polished
  • Single-sided hairline finish
  • No.1
Limit a
  • EN 1.4301 equiv.
  • EN 1.4016 equiv.
0.8 6.9
1.0 7.4
1.2 7.9
1.5 9.7
2.0 12.6
2.5 17.6
3.0 18.6
4.0 26.6
5.0 33.8
6.0 36.4
9.0 56.8
10.0 75.1
12.0 91.0
Material Plate Thickness Surface Treatment
None
  • Clear Anodized
  • Black Anodized
  • Black Anodized (matte)
  • (Outer Diameter ≤ 300 mm)
  • Clear Anodized
  • Black Anodized
  • Black Anodized (matte)
  • (Outer Diameter > 300 mm)
Limit a
EN AW−5052 equiv. 0.8 6.8 7.1
1.0 6.8 7.5
1.2 9.0 9.0
1.5 9.5 9.0
1.6 9.5 9.5
2.0 13.5 11.0
2.5 15.5 15.5
3.0 22.0 15.0
4.0 28.0 19.0
5.0 44.0 28.0
6.0 48.0 48.0
Material Plate Thickness Limit a
Perforated Metal —60° staggered round hole type— 0.8 6.8
1.0 6.8
1.5 9.5
Example

Width Specification Range for Bending

Machining Limits, Size Range Example
Plate Thickness Dimensional Range w
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
0.8 0.8 0.8 5~1200
1.0 1.0 1.0
1.2 1.2 1.2
1.5 1.5
1.6 1.6
2.0 2.0 2.0
2.3 10~1200
2.5 2.5
3.0 3.0
3.2
4.0 4.0
4.5
5.0 5.0
6.0
6.0 6.0 10~800
9.0 10~835
9.0 10~550
10.0 20~835
10.0 20~550
12.0 20~750
12.0 20~500
16.0
Plate Thickness Dimensional Range w
Perforated Metal —60° staggered round hole type—
0.8 30–900
1.0
1.5
Example

Minimum Distance Between a Hole and Bend : Normal Bending

Machining Limits, Size Range Example
Material Plate Thickness Hole Type
Through Hole Slotted/Rectangular Hole Tapped Hole Burring Tap Hole Countersunk Holes
Minimum a *1 Limit a Minimum a *1 Limit a Minimum a *2 Limit a Limit a *1 Minimum a Limit a
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
0.8 4.2 2.0 4.2 4.2
1.0 4.3 4.3 4.8 2.7 4.3
1.2 5.5 3.0 5.5 6.0 3.9 5.5
1.6 6.8 3.5 6.8 7.3 5.2 6.8
2.0 8.0 4.0 8.0 8.7 6.6 8.0 4.0
2.3 9.3 5.0 9.3 9.9 7.8 9.3 5.0
3.2 13.3 6.5 13.3 13.8 11.7 12.1 6.5
4.5 17.4 9.5 17.4 18.4 16.3 18.4 9.5
6.0 23.5 14.0 23.5 24.5 22.4 24.5 16.0
9.0 33.5 21.5 33.5 34.5 32.4 33.5 21.5
10.0 46.5 22.5 48.5 47.5 47.5 46.5 46.5
12.0 62.0 26.5 62.0 63.0 63.0 62.0 62.0
16.0 88.5 34.5 88.5 89.5 89.5 88.5 88.5
SECC 0.8 4.2 2.0 4.2 2.0 4.2
1.0 4.3 4.3 5.3 3.2 4.3
1.2 4.5 3.0 4.5 3.0 5.5 3.4 4.5
1.6 5.8 3.5 5.8 6.8 4.7 5.8
2.0 7.0 4.0 7.0 4.0 8.0 5.9 8.0 4.0
2.3 8.3 5.0 8.3 5.0 9.3 7.2 9.3 5.0
3.2 11.1 6.5 11.1 6.0 12.1 10.0 12.1 6.5
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
0.8 4.2 2.0 4.2 4.2
1.0 4.3 4.3 5.3 3.2 4.3
1.2 4.5 3.0 4.5 5.5 3.4 4.5
1.5 6.0 3.5 6.0 7.0 4.9 6.0
2.0 7.1 4.0 7.1 8.1 6.0 8.1 4.0
2.5 11.3 6.3 11.3 12.3 10.2 12.3 6.3
3.0 11.5 6.5 11.5 12.5 10.4 12.5 6.5
4.0 17.2 11.5 17.2 18.2 16.1 18.2 11.5
5.0 23.5 14.0 23.5 24.5 22.4 24.5 15.0
6.0 25.0 19.0 25.0 26.0 24.0 26.0 17.0
9.0 39.0 20.5 39.0 40.0 40.0 39.0 39.0
10.0 46.5 22.5 46.5 47.5 47.5 46.5 46.5
12.0 62.0 26.5 62.0 63.0 63.0 62.0 62.0
EN AW−5052 equiv. 0.8 4.2 4.2 4.2 4.2
1.0 4.3 4.3 4.3 5.2 4.3 4.3
1.2 5.5 5.5 5.5 5.5 5.5 5.5
1.5 6.0 6.0 6.0 7.0 6.0 6.0
1.6 6.0 6.0 6.0 7.0 6.0 6.0
2.0 8.2 8.2 8.2 8.2 8.2 8.2 8.2
2.5 10.0 10.0 10.0 11.0 10.0 10.5 10.0
3.0 13.3 13.3 13.3 13.3 13.3 13.3 13.3
4.0 17.2 17.2 17.2 18.2 17.2 18.2 17.2
5.0 27.0 27.0 27.0 27.0 27.0 27.0 27.0
6.0 28.0 28.0 28.0 28.0 28.0 28.0 28.0
Perforiertes Metall —60° staggered round hole type— 0.8 4.2 2.0 4.2
1.0 4.3 4.3
1.5 6.0 3.5 6.0
  • *1 The hole may be deformed if it is below the minimum value.

    The dimensions are therefore inaccurate, but will be processed as they are.

  • *2 If the distance is under the minimum value, re-tapping will be necessary and the fit may be affected.
Example

If there are internal angles of less than 90°, machining may not be possible even within the safe value range. If this is the case, meviy Support will contact you.

Minimum Distance Between a Hole and Bend : R-bend shape

Machining Limits, Size Range Example
Material Plate Thickness Hole Type
Through Hole Slotted/Rectangular Hole Tapped Hole Burring Tap Hole Countersunk Holes
Minimum a *1 Limit a Minimum a *1 Limit a Minimum a *2 Limit a Limit a *1 Minimum a Limit a
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
0.8 2.6 0.4 2.6 2.6
1.0 2.3 0.1 2.3 2.8 0.7 2.3
1.2 3.1 0.6 3.1 3.6 1.5 3.1
1.6 3.6 0.3 3.6 4.1 2.0 3.6
2.0 4.0 0.1 4.0 4.7 2.6 4.0 0.1
2.3 4.7 0.4 4.7 5.3 3.2 4.7 0.4
3.2 6.9 0.1 6.9 7.4 5.3 5.7 0.1
EN 1.0330 equiv. (Electrolytic Zinc Plating) 0.8 2.6 0.4 2.6 0.4 2.6
1.0 2.3 0.1 2.3 0.1 3.3 1.2 2.3
1.2 2.1 0.6 2.1 0.6 3.1 1.0 2.1
1.6 2.6 0.3 2.6 3.6 1.5 2.6
2.0 3.0 0.1 3.0 0.1 4.0 1.9 4.0 0.1
2.3 3.7 0.4 3.7 0.4 4.7 2.6 4.7 0.4
3.2 4.7 0.1 4.7 0.1 5.7 3.6 5.7 0.1
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4016 equiv.(2B)
0.8 2.6 0.4 2.6 2.6
1.0 2.3 1.0 2.3 3.3 1.2 2.3
1.2 2.1 0.6 2.1 3.1 1.0 2.1
1.5 3.0 0.5 3.0 4.0 1.9 3.0
2.0 3.1 0.1 3.1 4.1 2.0 4.1 0.1
2.5 6.3 1.3 6.3 7.3 5.2 7.3 1.3
3.0 5.5 0.5 5.5 6.5 4.4 6.5 0.5
EN AW−5052 equiv. 0.8 2.6 0.4 2.6 2.6
1.0 2.2 0.1 2.3 3.2 1.1 2.2
1.2 1.9 0.1 3.1 2.9 0.8 1.9
1.5 3.0 0.5 3.0 4.0 1.9 3.0
1.6 2.8 0.3 2.8 3.8 1.7 2.8
2.0 3.1 0.1 4.2 4.1 2.0 4.1 0.1
2.5 5.0 0.1 5.0 6.0 4.0 5.5 0.1
3.0 5.5 0.1 7.3 6.5 4.4 6.5 0.1
Perforiertes Metall —60° staggered round hole type— 0.8 2.6 0.4 2.6
1.0 2.3 0.1 2.3
1.5 3.0 0.5 3.0
  • *1 The hole may be deformed if it is below the minimum value.

    The dimensions are therefore inaccurate, but will be processed as they are.

  • *2 If the distance is under the minimum value, re-tapping will be necessary and the fit may be affected.
Example

Slit on the bending line (except for acute angle bending shapes with an internal angle of less than 90°).

Machining Limits, Size Range Example
Plate Thickness Minimuma *1 Minimumb *2 Limitc
    • EN 1.0330 equiv. EN 1.0320 equiv. (hot coiled)
EN 1.0038 equiv. EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4301 equiv. (single-sided #400-grit polished)
  • EN 1.4301 equiv.(single-sided hairline finish)
  • EN 1.4016 equiv.(2B)
  • EN AW−5052 equiv.
0.8 0.8 0.8 1.2 0.5
1.0 1.0 1.0 1.5
1.2 1.2 1.2 1.8 0.6
1.5 1.5 2.3 0.7
1.6 1.6 *4 1.6 2.4 0.8
2.0 2.0 2.0 3.0 1.0
2.3 2.3 3.5
2.5 2.5 3.8 1.2
3.0 3.0 4.5 1.5
3.2 3.2 4.8
4.0 4.0 6.0 2.0
4.5 4.5 6.7 2.2
5.0 5.0 7.5 2.5
6.0 6.0 6.0 9.0 3.0
9.0 9.0 13.5 4.0
10.0 10.0 10.0 15.0 5.0
12.0 12.0 12.0 18.0 6.0
16.0 16.0 24.0 8.0
  • *1 When a is not secured by the slit’s horizontal width, or when there is an acute angle bend, we can still provide an estimate, but instead of the limit value c, the aforementioned “Minimum distance between the hole and the bend” will be the limit value for the hole position.
  • *2 If the slit’s height is smaller than b or the outside R (fillet size) of the bend, automatic quotation is not possible.
  • *3 The limit value c is uniformly 3.0 mm only when the nearby hole in the right figure is a burring tap.
  • *4 Only for EN AW−5052 equiv.
Example Example Example

*Reference) Comparative example of machining limits of hole positions with or without openings

Comparison Example of Representative Materials Image/Prerequisites
No Opening (See: Minimum Distance Between a Hole and Bend h1 With Opening (Minimum Distance Between Nearest Hole and Bend) h2
Material Plate Thickness Minimum Distance Between a Through Hole and Bend Minimum Distance Between a Rectangular/Slotted Hole and Bend Minimum Distance Between a Tapped Hole and Bend
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.0038 equiv.
0.8 2.0 2.0 1.7
1.0 2.7 2.0
1.2 3.0 3.0 3.9 2.4
1.6 3.5 3.5 5.2 3.2
2.0 4.0 4.0 6.6 4.0
2.3 5.0 5.0 7.8 4.5
3.2 6.5 6.5 11.7 6.3
4.5 9.5 9.5 16.3 8.9
6.0 14.0 14.0 22.4 12.0
9.0 21.5 21.5 32.4 17.5
10.0 22.5 22.5 47.5 20.0
12.0 26.5 26.5 63.0 24.0
16.0 34.5 34.5 89.5 32.0
No Opening (See: Minimum Distance Between a Hole and Bend h1 With Opening (Minimum Distance Between Nearest Hole and Bend) h2
Material Plate Thickness Minimum Distance Between a Through Hole and Bend Minimum Distance Between a Rectangular/Slotted Hole and Bend Minimum Distance Between a Tapped Hole and Bend
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • Other stainless steel materials
0.8 2.0 4.2 1.7
1.0 4.3 3.2 2.0
1.2 3.0 4.5 3.4 2.4
1.5 3.5 6.0 4.9 3.0
2.0 4.0 7.1 6.0 4.0
2.5 6.3 11.3 10.2 5.0
3.0 6.5 11.5 10.4 6.0
4.0 11.5 17.2 16.1 8.0
5.0 14.0 23.5 22.4 10.0
6.0 19.0 25.0 24.0 12.0
9.0 20.5 20.5 40.5 17.5
10.0 22.5 22.5 47.5 20.0
12.0 26.5 26.5 63.0 24.0
No Opening (See: Minimum Distance Between a Hole and Bend h1 With Opening (Minimum Distance Between Nearest Hole and Bend) h2
Material Plate Thickness Minimum Distance Between a Through Hole and Bend Minimum Distance Between a Rectangular/Slotted Hole and Bend Minimum Distance Between a Tapped Hole and Bend
EN AW−5052 equiv. 0.8 2.0 2.0 1.7
1.0  3.1 2.0
1.2 2.5 2.5 3.2 2.4
1.5 3.5 3.5 4.9 3.0
1.6 3.2
2.0 4.0 4.0 6.0 4.0
2.5 4.5 4.5 9.0 5.0
3.0 5.0 5.0 10.4 6.0
4.0 11.5 11.5 16.1 8.0
5.0 12.0 12.0 16.8 10.0
6.0 13.0 13.0 21.0 12.0
  • These comparative examples are a selection of representative materials and hole types. It is also effective with other materials and hole types that are not listed.
  • Comparison of the outer radius of a bend (fillet size) and the height of the opening on the bend line when modeling to the minimum value “b.” · If the height of the opening is modeled to greater than “b,” the h2value will differ.

Minimum distance between nuts

Machining Limits, Size Range Example
Press-fit nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
EN AW−5052 equiv.
Nominal diameter M3 14 15.5 14
M4 15 17 15
M5 15 18 15
M6 17 20 17
M8 19 23 19
Weld (spot) nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
Nominal diameter M4 21 21
M5 21 21
M6 23 23
M8 25 25
M10 28 27
M12 30 29
  • *If multiple sizes of nuts are mounted, the distance will be decided by the minimum value of the larger nut.

Minimum distance between nut and hole

Machining Limits, Size Range Example
Press-fit nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
EN AW−5052 equiv.
Nominal diameter M3 11.2 12.8 11.2
M4 14.4 13.5 12.1
M5 14.4 14 12.7
M6 15.6 15 13.8
M8 17 16.5 15.6
Weld (spot) nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
Nominal diameter M4 16 15.5
M5 16 15.5
M6 18 16.5
M8 21 17.5
M10 23 18.5
M12 25 19.5

Minimum distance between nut and edge of the material

Machining Limits, Size Range Example
Press-fit nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
EN AW−5052 equiv.
Nominal diameter M3 4.5 6.7 4.5
M4 5.5 7.6 5.5
M5 6.5 8.2 6.5
M6 8 9.3 8
M8 10 11.1 10
Weld (spot) nut material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
Nominal diameter M4 7.5 7.9
M5 7.5 7.9
M6 9 9.1
M8 10.4 10.7
M10 12.5 12.9
M12 14.5 15

Maximum distance between nut and edge of the material

Machining Limits, Size Range Example
Maximum distance material
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN1.0330 equiv. (Electrolytic Zinc Plating)
  • EN 1.4301 equiv. (2B)
  • EN 1.4301 equiv. (Single-Sided #400-Grit Polished)
  • EN 1.4301 equiv. (Single-sided hairline finish)
  • EN 1.4016 equiv.
EN AW−5052 equiv.
Press-fit nut(coarse) 450 290 450
Weld nut(coarse) 500 930 * 500

*The maximum distance would be 500 when R bending is included

  • *With the plate developed into a flat plate, measure the distance between any material edge and the center of the nut, and use the smallest value to judge it can produce or not.

Minimum distance between engravings, between edge or hole

Machining Limits, Size Range Example
Plate Thickness Minimum distance between edge Through Hole・Tapped Hole・Countersunk Holes・Slotted/Rectangular hole Burring Tap Hole
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
  • EN 1.4301 equiv.(No.1)
  • EN 1.4301 equiv.(2B)
  • EN 1.4016 equiv.(2B)
Limit a Guaranteed value b Limit b Guaranteed value c Limit c
0.8 0.8 2.0 4.0 2.0 5.0 3.0
  • *The distances between holes and the etched letter are measured from the outer edge of the etched letter to the outermost diameter.
  • * As an exception of Friction drilled/tapped holes, the limit value of c is consistently set at 3.0 mm.
  • * If the distance is below the guaranteed limit, The etched text may be deformed.
1.0 1.0
1.2 1.2
1.5
1.6
2.0 2.0
2.3
2.5
3.0
3.2
4.0
4.5
5.0
6.0 6.0
9.0 9.0
10.0 10.0
12.0 12.0
16.0

Minimum distance between engraving and nut

Nut (Press-fit) material properties Example
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.4301 equiv.(2B)
  • EN 1.4016 equiv.(2B)
Guaranteed value a Limit a Guaranteed value a Limit a
  • *The minimum bending height for each material and thickness is applied to the guaranteed limit from the outer edge of the etched letter.
  • *If the distance is below the guaranteed limit, The etched text may be deformed.
Nominal diameter M3 6.5 4.5 8.7 6.7
M4 7.5 5.5 9.6 7.6
M5 8.5 6.5 10.2 8.2
M6 10.0 8.0 11.3 9.3
M8 12.0 10.0 13.1 11.1
Nut (spot welding) material properties
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.4301 equiv.(2B)
  • EN 1.4016 equiv.(2B)
Guaranteed value a Limit a Guaranteed value a Limit a
Nominal diameter M4 9.5 7.5 9.9 7.9
M5 9.5 7.5 9.9 7.9
M6 11.0 9.0 11.1 9.1
M8 12.4 10.4 12.7 10.7
M10 14.5 12.5 14.9 12.9
M11 16.5 14.5 17.0 15.0

Minimum distance between engraving and bending

Machining Limits Example
material properties Plate Thickness Guaranteed value h Limit h
  • EN 1.0330 equiv.
  • EN 1.0320 equiv. (hot coiled)
  • EN 1.0038 equiv.
0.8 6.2 4.2
  • *The minimum bending height for each material and thickness is applied to the guaranteed limit from the outer edge of the etched letter.
  • *If the distance is below the guaranteed limit, The etched text may be deformed.
1.0 6.3 4.3
1.2 7.5 5.5
1.6 8.8 6.8
2.0 10.2 8.2
2.3 11.4 9.4
3.2 15.3 13.3
4.5 19.4 17.4
6.0 25.5 23.5
9.0 41.0 39.0
10.0 48.5 46.5
12.0 64.0 62.0
16.0 90.5 88.5
  • EN 1.4301 equiv.(2B)
  • EN 1.4016 equiv.(2B)
  • EN 1.4301 equiv.(No.1)
0.8 6.2 4.2
1.0 6.3 4.3
1.2 6.5 4.5
1.5 8.0 6.0
2.0 9.1 7.1
2.5 13.3 11.3
3.0 13.5 11.5
4.0 19.2 17.2
5.0 25.5 23.5
6.0 27.0 25.0
9.0 41.0 39.0
10.0 48.5 46.5
12.0 64.0 62.0

Minimum Angle for Acute Angle Bending

Machining Limits, Size Range Example
  • The angle (θ) for acute angle bending must be 45° or more.
  • (However, when the plate thickness is 9 mm, the acute angle (θ) must be 88° or more.)
Material Plate Thickness Bend angle
EN 1.4301 equiv.(2B) 6.0 θ≥50°
EN AW−5052 equiv. 2.5 3.0 4.0 5.0 θ≥60°
6.0 θ≥88°
EN 1.0330 equiv. EN 1.0320 equiv. (hot coiled) 4.5 6.0
EN 1.sssss0038 equiv. 9.0 10.0 12.0
EN 1.0038 equiv. 9.0 10.0 12.0 16.0
Example

Minimum Radius of Rectangular Holes

Machining Limits, Size Range Example
  • The radius (R) of the corners of a rectangular hole must be 0.5 mm or more.
  • (For clear resin, this must be 3 mm or more.)
Example

Bending Conditions

Bending Interference

  • For sheet metal parts, the meviy platform performs interference analysis for the bending process.
  • The forming will be deemed impossible if the results of the analysis suggest there will be interference with the die.

Example 1) Model image before and after bending during normal conditions

曲げ加工の干渉

Example 2) Model image where die interference occurs

Bending interference
  • If a warning message is displayed, check the part for any interference using “Check the interference image” and consider changing the shape.
  • After taking corrective action, re-upload the 3D model and check the revised quotation results.
  • The design guidelines for C-bends and stepped bends (Z-bends) are provided below as more detailed examples. See below.

Design Guidelines for C-Bends and Stepped Bends (Z-Bends)

To prevent die interference, design models with reference to the standard shapes shown below.

Modeling Rules Example
  • When outer dimension A is less than or equal to outer dimension C, set inner dimension B so that it is greater than A.
  • Outer dimensions A and C must be at least the minimum bending height (See machining limits: minimum bending height, mentioned above)
C-bend
  • The stepped bend height should be equal to dimension A plus double the plate thickness (t).
  • Dimension A must be equal to or greater than the minimum bending height (See machining limits: minimum bending height, mentioned above).
C-bend

However, the meviy platform determines whether it is possible to manufacture the model based upon positive results of the interference analysis. (Examples given below)

Example 3) C-shaped bending interference: Adjust the size of the channel web in order to clear any interference (the figure on the right shows the analysis image).

 Example 4) Stepped bending interference: Adjust the bending height to clear any interference (the figure on the right shows the analysis image).

Presence of Edges Parallel to the Bend Line

Any backgauges used in the bending process, along with the edges of parts, are taken into consideration in the interference analysis of the bending process. The angle of the part during the bending process may not be stable if there are no edges parallel to the bend line, creating a risk that the bend may not be made in the correct position. If the below message is displayed, consider changing the shape such that the model includes edges parallel to the bend line.

Example 1) No edges parallel to the bend line

 Example 2) Edge parallel to the bend line [automatic quoting available]

Minimum distance between cutout and bend

  • The bending process is carried out by placing the workpiece (to be bent) on a die and punching it from above.
  • However, if the shape of the workpiece does not align on both ends of the die, it cannot be bent.
  • For the minimum distance between the cutout and the bend, we recommend the following.
  • Please note that if the value falls below the minimum value, the bending line may shift because part of the workpiece is no longer covered by the bending die.
  • The dimensions will be inaccurate, but will be processed as they are.
  • In the case of a part that falls below the limit value, it may not be possible to process it. In this case, we will contact you.
  •
Modelling rules Location
  • For plate thickness t, the limit value of h should be as follows
  • 0.8 ≦ t ≦ 2.0, limit value = 5t
  • 2.3 ≦ t ≦ 9.0, the limit value = 4t
  • For plate thickness t, the minimum and limit values of b should be as follows
  • 0.8 ≦ t ≦2.0, guaranteed value = 2t, limit value = t
  • 2.3 ≦ t ≦ 9.0, guaranteed value = none, limit value = 2t

Confirmation of nut interference during bending

  • In the interference analysis during bending, the analysis is performed with the 3D shape of the nut reproduced for the part where the nut can be mounted.
  • If interference with the die is found as a result of the analysis, the area will be judged that the nut cannot be attached.

Sheet Metal Quoting Error Troubleshooting

  • When uploading a model to meviy, a “Quotation failure” error may occur.
  • Below is an overview of why these errors occur and how to resolve them,as well as some example errors.

What is a quotation failure?

When uploading a model to meviy, an error may occur where the model cannot be auto-quoted.

How to check for errors in the project list

  • After uploading a model to meviy, the “” or “” icon will appear if the model cannot be auto-quoted.
  • In this case, please go to the 3D Viewer and confirm the details of the error from the Precaution column.

How to check error messages in the 3D Viewer

  • Please open 3D viewer and check “Precaution”.
  • If you click “Check”, you will see error messages and a range for auto-quotation.
  • Depending on error cause, a range for auto-auotation may not be displayed.

How to locate an error

  • Clicking the “Confirm” button will highlight the error location in the model.
  • Once this error is resolved, automatic quoting will be possible.

Case 1: Failure to read uploaded file

  • This error occurs when a 3DCAD format or extension that is not supported by meviy is uploaded.
  • To resolve this, please check the formats supported by meviy and re-upload a supported format.

Notes

  • Please see below for the formats and extensions that can be uploaded to meviy.

Case 2: Unsupported shape

  • This error is caused by uploading a shape that is not eligible for automatic quotation with meviy’s Sheet Metal Plate service.
  • To resolve this, please check the quotable shapes and modify the model accordingly.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “There is an unsupported shape.”

Notes

  • See below for shapes supported by the Sheet Metal service.
  • → [FA Mechanical Parts] Sheet Metal Parts>Applicable parts/Materials>Shapes Eligible for Quotation

Case 3: Plate thickness not available

  • This error occurs when the requested plate thickness is not supported.
  • To resolve this, modify the model to match the corresponding plate thicknesses.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “There are no supported sheet thicknesses.”

Notes

  • The part thickness must match one of the gauge thicknesses supported by meviy Sheet Metal.

  • Please refer to the following for available sheet thicknesses.
  • → [FA Mechanical Parts] Sheet Metal Parts>Applicable parts/Materials>Material, Surface Treatment, Size

Case 4: Uneven plate thickness

  • This error occurs when the plate thickness is not constant during modeling or when the R length setting is not within the correct range.
  • To resolve this, modify the model to create a uniform sheet thickness.

Tip

  • If the following message is displayed in the 3D viewer, it corresponds to this error.
  • – “Model sheet thickness is non-uniform.”

Notes

  • Please see below for sheet metal modeling guidelines.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Basic Modeling Rules

Case 5: Distance between features

  • This error occurs when the distance between holes and end faces, or between holes is below the limit.
  • To resolve this, please increase the distance between the hole and the end face/hole.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “XX and XX are too close.”

Notes

  • See below for minimum distances between holes and end faces/holes.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Range of Machining Limits

  • Please also use the measurement function to check the distance.
  • → [FA Sheet Metal] Quotation Settings>Measuring 3D models

  • If you have any questions, please request a manual quotation by meviy support. See below for assistance on manual quotations.
  • →Quotation conditions settings>[FA Sheet Metal] Quotation Settings>Information about manual quotation

Case 6: Bend-to-hole distance

  • This error occurs when the bend-to-hole distance is below the limit.
  • To resolve this, either increase the distance between the bend and the hole or create an opening on the bend line (clearance hole).

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “XX and XX are too close.”

Notes

  • See below for the required minimum distance between a hole and a bend.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Range of Machining Limits

  • See below for rules on openings on the bend line.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Range of Machining Limits

  • If you have any questions, please request a manual quotation by meviy support. See below for assistance on manual quotations.
  • →Quotation conditions settings>[FA Sheet Metal] Quotation Settings>Information about manual quotation

Case 7: Undersized bend height

  • This error occurs when the bending height is below the limit.
  • To resolve this, increase the bending height to a sufficient height.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “The bend height is too small.”

Notes

  • See below for minimum bending heights.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Range of Machining Limits

Case 8: Interference during bending

  • This error occurs when the part geometry causes interference during bending.
  • To resolve this, modify the part design to avoid interference.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “The part and mold are interfering during bending.”

Notes

  • See below for guidelines on die interference during bending.
  • → [FA Mechanical Parts] Sheet Metal Parts>Design Guidelines>Bending Conditions

Case 9: Unrecognized holeshape

  • This error occurs when there is an unrecognized hole shape.
  • To resolve this, please change the hole to a supported shape and re-upload the file.

Tip

  • If the following message is displayed in the 3D Viewer, it corresponds to this error.
  • – “There is an unsupported hole shape.”

Notes



Allowable Dimensional Tolerances

No. Standard Part Classification of Standard Dimensions Standard Values* Example
Normal bending R bending (FR bending)
Plate thickness≦6.0mm Plate thickness>6.0mm Plate thickness≦3.2mm
1 Section with no bending 6 or less ±0.1 ±0.3 ±0.3 Example
More than 6, equal to or less than 30 ±0.2 ±0.5 ±0.5
More than 30, equal to or less than 120 ±0.3 ±0.8 ±0.8
More than 120, equal to or less than 400 ±0.5 ±1.2 ±1.2
More than 400, equal to or less than 1,000 ±0.8 ±2.0 ±2.0
More than 1,000, equal to or less than 2,000 ±1.2 ±3.0 ±3.0
2 Section with bending 6 or less ±0.3 ±0.5 ±0.5
More than 6, equal to or less than 30 ±0.5 ±1.0 ±1.0
More than 30, equal to or less than 120 ±0.8 ±1.5 ±1.5
More than 120, equal to or less than 400 ±1.2 ±2.5 ±2.5
More than 400, equal to or less than 1,000 ±2.0 ±4.0 ±4.0
More than 1,000, equal to or less than 2,000 ±3.0 ±6.0 ±6.0
  • *General tolerance for JIS B 0408 metal pressed products: use Grade B (plate thickness≦6.0mm), Grade C (plate thickness>6.0mm). For R bend it will be Grade C.
  • *If a painting/coating is specified, the standard value for material conditions is used.

The allowable dimensional tolerances are applicable only for dimensions for between holes on the same face and end-faces/perpendicular-faces that are adjacent as a result of the bending.
The tolerances are not applicable for hole-to-hole or hole-to-end face dimensions on non-adjacent faces (across multiple bent sections).

Example 1) Dimensions for which allowable dimensional tolerances are applicable

Example 2) Dimensions for which allowable dimensional tolerances are not applicable

Example 2) Dimensions for which allowable dimensional tolerances are not applicable

Hole Machining Specifications

Friction Drilled/Tapped Holes
No. Standard Part Standard Value Example
1 Flange thickness 1/2 of plate thickness (reference value) Example
2 Flange height Equal to plate thickness (reference value)
Countersunk Holes
No. Nominal Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 Example
1 Countersink Diameter (D) Standard Dimensions 6.3 8.3 10.4 12.5 16.5 20.0 24.5 28.5 32.5 Example
Maximum 6.9 9.6 11.1 13.3 17.8 22.4 26.5 30.5 34.5
2 Pilot Hole Diameter (d) Standard Dimensions 3.4 4.3 5.3 6.5 8.5 10.5 12.5 14.5 16.5
Maximum 4.7 7.0 8.4 9.9 13.8 14.2 14.5 16.5 18.5
3 Countersink Height (t) Reference Dimensions 1.5~1.6 2.0~2.3 2.5~2.7 2.2~2.9 3.2~3.8 4.9~5.1 6.0 7.0 8.0
*Will be manufactured so that the head section does not protrude when using hex-socket countersunk bolts (JIS-B1194).
Press-fit nut
No. Nominal diameter M3 M4 M5 M6 M8 M10 M12 Example
1 Width of two face 5.5 7.0 8.0 10.0 13.0 15.0 17.0
2 Hight of nut 2.1 2.3 3.1 4.1 4.6 6.1 7.1
  • *The values of press-fit nut are for reference only.
  • *The mounting angle (angle between one corner of the nut and the edge) of the nut (press-fit) is optional.
Weld (spot) nut
No. Nominal diameter M4 M5 M6 M8 M10 M12 Example
1 Width of two face 11.0 11.0 13.0 15.0 17.0 19.0
2 Hight of nut 4.2 4.2 5.2 6.7 8.2 9.8
  • *The values of weld (spot) nut are for reference only.
  • Nuts will be used equivalent to the values in the table above.
  • For weld (spot) nut, nuts with strength category 5 in accordance with JIS B1196:2010 are used.
  • *The mounting angle (angle between one corner of the nut and the edge) of the nut (spot weld) is optional.

Bending Specifications

Bending Specifications

Normal Bending
No. Standard Part Standard Value Example
1 Bend angle tolerance
  • Plate Thickness ≤10.0 mm: ±1.0°
  • Plate Thickness >10.0 mm: ±1.5°
Example
2 Inner radius (r) Plate thickness (reference value)
3 Outer radius (R) R = plate thickness × 2 (reference value)
R-bend shape(FR bending)
No. Standard Part Standard Value Example
1 Bend angle tolerance
  • ±2.0°
Example
2 Inner R Modeling dimension (Reference value)
3 Outer R Inner R+Plate thickness (Reference value)

Protrusions from Bending

Standard Value Example
As shown in the right hand example, bulging/protrusions of about 15% of the plate thickness can occur on each side. Example

Defects Caused by Bending

Standard Value Example
As shown in the right hand example, defects have occurred in the bent die. Example
Since it is processed as FR bending (feed bending), die marks will be left on the R bending part.
■Without surface treatment (EN AW−5052 equiv.)
Inner bend Outer bend
■Paint
Inner bend Outer bend

Cracks caused by bending (EN AW−5052 equiv.)

Standard Value Example
EN AW−5052 equiv. would have a slight crack when bent due to its material properties.
  • ■EN AW−5052 equiv. (Thickness: 6.0 mm)
  • Beispiel

Appearance of Cut Surfaces

Exterior Appearance Finish

Cut Surface

Note that the appearance of the cut surface may vary depending on how it was cut.

(The cutting method cannot be specified.)

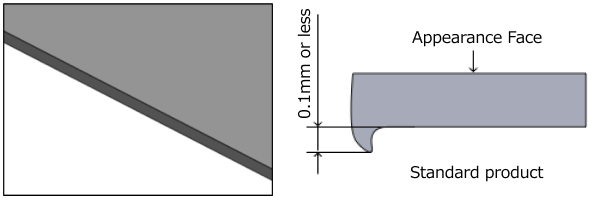

Burring in the Pulling Direction

Standard Value Example
As shown in the right hand example (from behind), burrs of 0.1 mm or less may occur as a result of the machining process. Example

About Hairline Direction

  • EN 1.4301 equiv.(single-sided hairline finish) has a hairline finish on the main appearance surface. (See the figure on the right)
  •
  • The polishing direction of the hairline finish is called the “hairline direction,” and in the meviy sheet metal service, the longitudinal direction of the unfolded drawing created by expanding the 3D model shape is used as the hairline direction.
  •
  • If you would like to use a different direction, please contact meviy support for a quote.
Einseitige feine Linienstruktur (Hairline-Finish)
Logic to determine the longitudinal direction of the development
Calculates the maximum rectangle of the unfolded drawing, and develops horizontally in the direction of the longest side of the rectangle.
Logic to determine the longitudinal direction of the development
Shape with arbitrary hairline direction
In some cases, the maximum rectangle of the unfolded drawing is not defined, or the longest side of the rectangle cannot be defined (See the figure on the right.). For such shapes, the hairline direction is optional, and you can specify the desired direction in the quotation in meviy support.
Shape with arbitrary hairline direction
Effects on unfolded dimension calculation
  • The effect of expansion due to bending must be taken into account when calculating the unfolded dimensions for manufacturing.
  •
  • In the case of EN 1.4301 equiv.(single-sided hairline), the expansion is about twice the thickness of the plate at each bending point, so the unfolded dimensions become shorter by that amount. As a result, please note that the longitudinal direction in the 3D model and the unfolded drawing may be switched. (See the figure on the right)
Effects on unfolded dimension calculation

About Painted Sheet Metal

  • Hanging jig marks may be left when painting (see diagram on right).
  • The iron phosphate coating is used for surface preparation, and the paint is applied with a thickness of 80µ ± 30 (excluding thickness tolerance).
  • However, this is not a guaranteed value as the coating thickness of the film may vary depending on the shape.
  • We carry out checks with coating thickness gauges, pull-offs with tape and cross-cut adhesion test. We also visually check the appearance of the product by referring to the “Dirt comparison chart” to check for color, dirt, and dimples.
  • To clean, wipe with water and a soft cloth or sponge, or wipe with a diluted neutral detergent, then wipe with a dry cloth. Please refrain from using alcohol and petroleum solvents such as thinner, and benzene.

Engraving

Engraving specifications

Set engraving

Set engraving

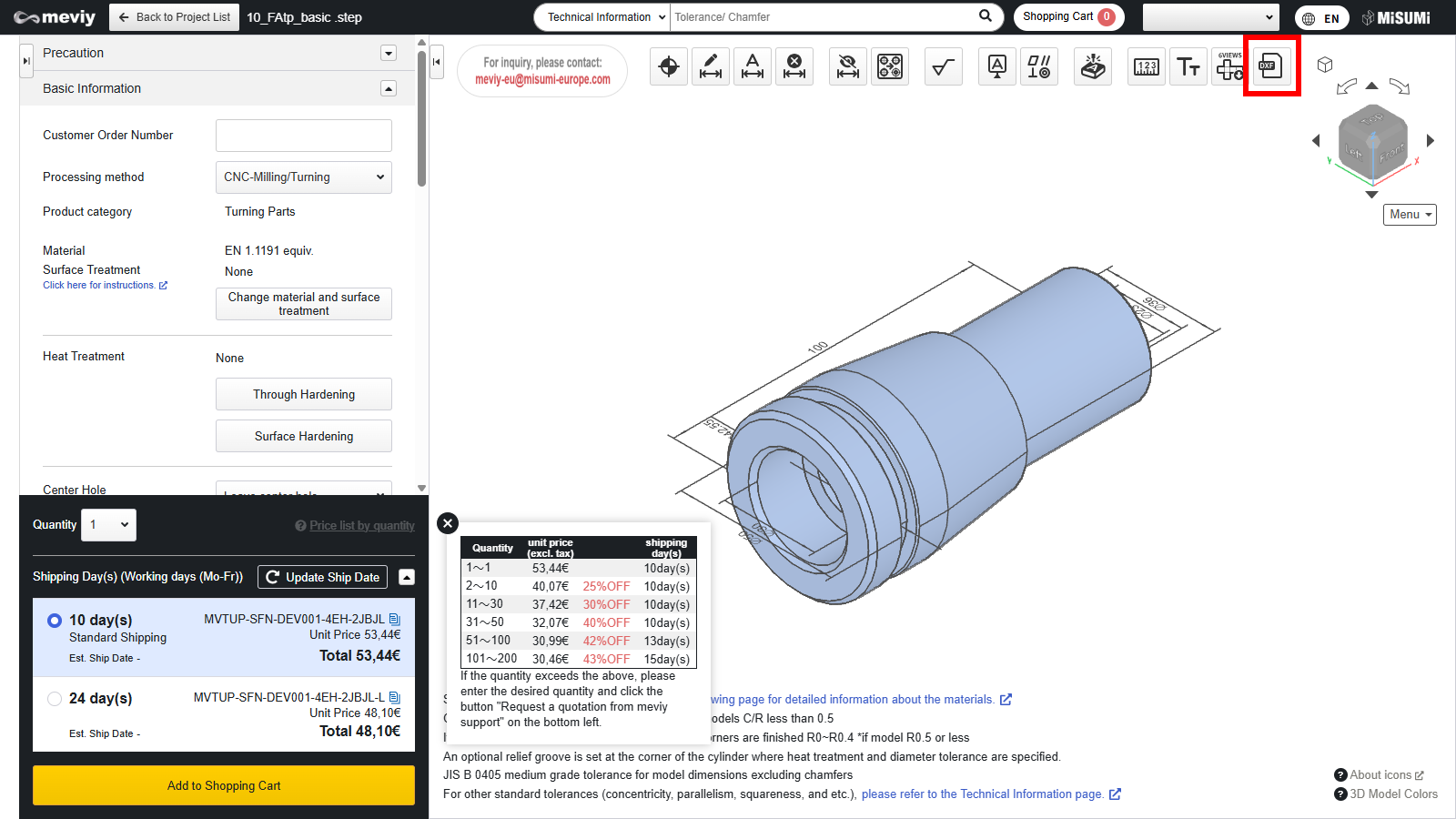

Etching for sheet metal can only be input and positioned on the 3D viewer when it is applied to the appearance surface.

Appearance of engraving

Engraving finishes

  • ・The engraving of sheet metal is done by scribing.
  • ・The width of the letters (approx. 0.1 mm), the depth of the engraving and the distances between the letters cannot be specified.
  • ・Font size and angle are approximate values. We cannot guarantee accuracy.

important notice

  • ・Depending on the material and machine, burn marks may occur in the area of the letters.
  • ・Depending on the material, the finish of the etching may be lighter.
  • ・If the size of the engraved characters is small (approx. 3 to 5 mm) or if the shape of the characters is complicated, the characters may be crushed.

Engraving specifications

Maximum part size and supported material

  • 300mm x 300mm (if the engraving is on the TOP/BOTTOM side)
  • 200mm x 200mm(if the engraving is on the FRONT/BACK side)
  • 200mm x 200mm(if the engraving is on the LEFT/RIGHT side)
* Please see the table below for materials and surface treatment.
Classification material properties Surface Treatment
Steel
  • EN 1.0038 equiv.
  • EN 1.0038 equiv.(annealed material)
  • EN 1.1206 equiv.
  • EN 1.1206 equiv.(Reference Hardness: 20-27HRC)
  • No treatment
  • Electroless nickel plating
  • Hard Chrome Plating(Flash Plating)
  • Trivalent Chromate (clear)
  • Trivalent chromate (black)
Pre-hardened steel NAK55 equiv. No treatment
Aluminum
  • EN AW−2017 equiv.
  • EN AW−5052 equiv.
  • EN AW−6061 equiv.
  • EN AW−7075 equiv.
    • No treatment
    • Clear anodized
    • Black anodized
Stainless steel
  • EN 1.4305 equiv.
  • EN 1.4301 equiv.
  • EN 1.4401 equiv.
  • EN 1.4016 equiv.
No treatment
*For surface-treated products, the engraving process is carried out “after” surface treatment.

Processing method

  • “Engraving is done either by “laser cutting” or “machining”.
  • *You cannot specify the engraving process
  • *Surface-treated products will be engraved in the following order.
  •  - Laser cutting: After surface treatment
  •  - Machining: Before surface treatment

Possible locations for setting engraving

The engraving instructions can be given on TOP, BOTTOM, FRONT, BACK, LEFT, and RIGHT surfaces (flat surfaces). *Pocket flat surfaces with a depth of 15 mm or less are also available for engraving.

Available number of engraving settings

Several engraving instructions are available for different surfaces.

Character Specifications

  • Half-width alphanumeric characters and some symbols (+-. #$%&()=*:? /_~) can be freely entered.
  • *Line feed and space input are also supported.
Character size 3~15mm(Can be specified with 1 mm pitch)
17.5~30mm(Can be specified with 2.5 mm pitch)
*Font (font, spacing) and line spacing cannot be specified.
*The letter size of the engraving are only reference values. DimSensional accuracy is not guaranteed.
The size definition of the engraved characters is as follows.
i.e., When specifying a font size of 10mm

Angle description

  • The angle can be specified in 45 degree steps (0 to 360 degrees).
  •  *The angle is only a rough standard value. Angle accuracy is not guaranteed.

Shipping Days

Normal delivery time (5~ days), long delivery time service (20~ days).
*There is no additional delivery date due to engraving.

Quality Control

  • Quality precautions for engraving
  • 1. Burrs and burn marks may occur on the engraving area.
  • 2. Some characters may be smashed if a 3 to 5 mm engraving character size is specified.
  • 3. Depending on the material and surface treatment, there is a possibility that the engraving characters may become blurred.
  • 4 The letter size and angle of the engraving are only reference values. DimSensional accuracy is not guaranteed.
  • 5. Depending on the content of the characters, there may be cases where the size differs from the specified size
  • 6. Depending on the total length of the engraving, there is a possibility of discrepancies in letter spacing and height (ref.: 90 mm or more).
Information on engraving quality can be found on the following page

Perforated Metal Machining Specifications

Standard Value Example
There are no restrictions on the relationship between cut sections and hole positions. (Use caution when handling cut sections or the cutouts around holes as they are particularly sharp.) Example

Clear Resin Specification

General Tolerance Standards for Machining Dimensions

The tolerance for external dimensions is ±1.0. See the table below for the tolerances used for other sections.

Standard Part Tolerance Grade Classification of Standard Dimensions Tolerance
Symbol Description
Dimensional tolerances for length dimensions, excluding chamfered parts m Medium Equal to or greater than 0.5, equal to or less than 3 ±0.1
More than 3, equal to or less than 6 ±0.1
More than 6, equal to or less than 30 ±0.2
More than 30, equal to or less than 120 ±0.3
More than 120, equal to or less than 400 ±0.5
More than 400, equal to or less than 1,000 ±0.8
More than 1,000, equal to or less than 2,000 ±1.2
Dimensional tolerances for length dimensions of chamfered parts c Rough Equal to or greater than 0.5, equal to or less than 3 ±0.4
More than 3, equal to or less than 6 ±1
More than 6 ±2
*General tolerances for JIS B 0405 cutting are used.
Standard Value Example
If the internal angles of the model are sharp corners or are less than R3, machining of around R3 will be applied. (If you would like the internal angle to be finished to a sharp corner or to less than R3, contact meviy support for an estimate.) Example

Dimensional Changes for Clear Resin

Unlike metal, resin is a material that easily deforms as a result of temperature and humidity and changes in dimensions. Accuracy is assured in the following way:
  • Testing is conducted in a temperature- and humidity-controlled environment
  • Accuracy assurance is based on the results of inspections performed immediately before shipment.

Quality Control

Quality Assurance Scope for External Appearances

Cut surface Marks from the hanging jig used during the application of the painting coat
Cut surface Cut surface Marks from the hanging jig used during the application of the painting coat

Surface

  • The external appearance surfaces must be free of blemishes caused by nails.
  • For surfaces that are not considered external appearance surfaces, some processing/machining marks may be present.
Burring in the pulling direction Damage caused by bending Protrusion from bending
Burring in the pulling direction Damage caused by bending Protrusion from bending

Machined Sections (Punching, Bending)

  • Any burrs that exceed 0.1 mm that occurred as a result of the machining/processing will be removed.
    *Does not include light chamfering or C-chamfering.
  • If chamfering or filleting is required on the external sections, include this in the modeling. However, this does not apply to chamfers and fillets in the plate thickness direction.
  • Note that the appearance of the cut surface may vary depending on the processing/machining method. (The processing/machining method cannot be specified.)
  • Marks may remain from the hanging jig used during the application of the painting coat.
  • Machining/processing marks from the die used during the bending process may remain.
    *For EN 1.4301 equiv.#400 and EN 1.4301 equiv.(single-sided hairline finish), protective sheets are applied to external appearance surfaces to protect against the formation of defects.
  • Bulging/protrusions of about 15% of the plate thickness can occur on each side of the bent sections during the bending process.

Notes on the product appearance

EN 1.0038 equiv. plate thickness 16㎜
EN 1.4301 equiv.(NO.1)
plate thickness 12㎜
EN 1.0038 equiv.
plate thickness 16㎜

Cutting surface

  • For thick plates (over 6.0 mm), burn marks from laser cutting may be noticeable.
EN 1.0038 equiv. plate thickness 16㎜
Unevenness inside the holeHole shape distored
on the back side

Hole machining

  • Unevenness may occur inside the hole. Also, when viewed from the back side of the product, the shape of the hole may be slightly distorted.

Inspection Item

View of inspection (1) View of inspection (2)
View of inspection (1) View of inspection (2)

Inspection Details

  • External appearance inspection: Defects, dents, unevenness, condition of painting coat, condition of surface treatment (visual)
  • Dimensional check: Viewer display dimensions (digital Vernier calipers, goniometers, etc.)
  • Inspection frequency: As part of each process and immediately prior to shipment

Specifiable Dimensional Tolerances for Sheet Metal/Thin Shim Plates

No. Standard Part Classification of Standard Dimensions Standard Values*

Normal Bending

R-bend (FR bending)

Plate Thicness
≦6.0mm
Plate Thicness
>6.0mm
Plate Thicness
≦3.2mm
1 Section with no bending 6 or less ±0.1 ±0.3 ±0.1
More than 6, equal to or less than 30 ±0.2 ±0.5 ±0.2
More than 30, equal to or less than 120 ±0.3 ±0.8 ±0.3
More than 120, equal to or less than 400 ±0.5 ±1.2 ±0.5
More than 400, equal to or less than 1,000 ±0.8 ±2.0 ±0.8
More than 1,000, equal to or less than 2,000 ±1.2 ±3.0 ±1.2
2 Section with bending 6 or less ±0.3 ±0.5 ±0.5
More than 6, equal to or less than 30 ±0.5 ±1.0 ±1.0
More than 30, equal to or less than 120 ±0.8 ±1.5 ±1.5
More than 120, equal to or less than 400 ±1.2 ±2.5 ±2.5
More than 400, equal to or less than 1,000 ±2.0 ±4.0 ±4.0
More than 1,000, equal to or less than 2,000 ±3.0 ±6.0 ±6.0

General Tolerance: JIS B 0408 Grade B (Plate Thickness ≤6.0 mm), Grade C (Plate Thickness >6.0 mm)

  • If painting/coating is specified, the standard value for material conditions is used.
  • The allowable dimensional tolerances are applicable only for dimensions for between holes on the same face and end-faces/perpendicular-faces that are adjacent as a result of the bending.
    *The tolerances are not applicable for hole-to-hole or hole-to-end face dimensions on non-adjacent faces (across multiple bent sections). See “Example of non-applicable dimensions” in the figure below.
Example Example of non-applicable dimensions

Dimensional Assurance Range for Clear Resin

Standard Part Tolerance Grade Classification of Standard Dimensions Tolerance
Symbol Description
Dimensional tolerances for length dimensions, excluding chamfered parts m Medium Equal to or greater than 0.5, equal to or less than 3 ±0.1
More than 3, equal to or less than 6 ±0.1
More than 6, equal to or less than 30 ±0.2
More than 30, equal to or less than 120 ±0.3
More than 120, equal to or less than 400 ±0.5
More than 400, equal to or less than 1,000 ±0.8
More than 1,000, equal to or less than 2,000 ±1.2
Dimensional tolerances for length dimensions of chamfered parts c Rough Equal to or greater than 0.5, equal to or less than 3 ±0.4
More than 3, equal to or less than 6 ±1
More than 6 ±2
*General tolerances for JIS B 0405 cutting are used.

General Tolerance Standards for Machining Dimensions

  • The tolerance for the external dimensions is ±1.0. See the table to the left for the tolerances for other sections.

Dimensional Changes for Clear Resin

  • For dimensional changes caused by temperature or humidity, accuracy is guaranteed based on the following conditions:
    – The inspection is performed in a temperature-controlled environment.
    – Accuracy assurance is based on the results of inspections performed immediately before shipment.

Clear Resin R

  • If the internal angles of the model are sharp corners or are less than R3, machining of around R3 will be applied.
    See “Clear resin internal angle (R)” in the figure below
  • If you would like the internal angles to be finished to a sharp corner or to less than R3, contact meviy support for an estimate.
Clear resin internal angle (R)
Clear resin internal angle (R)

Quality Control of Nut Mounted Products

Regarding the appearance of nut mounted products

Product with press-fit nut

  • EN 1.0330 equiv. (Electrolytic Zinc Plating) and EN 1.0330 equiv. (Galvanized) may have some plating peeling due to nut mounting.
  • Installation of nuts near the edge of the plate may cause the edge to swell.

Product with weld (spot) nut

  • For products with spot-welded nuts on steel materials,remove burns by using a file or similar tool. Scratch marks may appear due to the filing.
  • EN 1.0330 equiv. (Electrolytic Zinc Plating) and EN 1.0330 equiv. (Galvanized) may have some plating peeling due to nut mounting.
    Spot-welded nuts on stainless steel will be removed the burn marks by electrolytic polishing.

    Also, polishing to remove burns is not performed because it causes plating to peel off.

  • The projection part of the weld nut may be eluted, but the following items are inspected to confirm that there is no problem with fastening.

    Finish marks may remain.

  • – Bolts can pass through
  • – The projection part is not convex more than the material thickness

Regarding the Strength Warranty for Nut mounted Products

Product with press-fit nut

  • We do not guarantee the strength of products with press-fit nuts, but we will ship them after confirming that there are no problems with fastening.

Product with weld (spot) nut

  • We do not guarantee the strength of products with weld (spot) nuts, but we will ship them after confirming that there are no problems with fastening.In addition, periodic evaluations are conducted in accordance with JIS B1196.

Quotable Shapes

Machining Direction

The machining direction can be perpendicular and parallel to the 6 rectangular faces.
Machining at an angle against the direction of the rectangular faces requires dedicated equipment and is not possible with meviy.

*With 3-axis milling, it is not possible to machine at angles that run diagonal to the 6 faces.

Machining Direction

Machining Positions

The green areas below indicate points that can be machined. The yellow areas indicate points that cannot be machined and are therefore not possible with meviy.

Yellow areas can be adjusted or deleted to make an eligible shape.

(1) Pocket Shapes

The shape of a pocket (area cut by the end mill) varies depending on the placement of chamfers and curves (convex and concave). Here are some examples:

The green areas indicate points that can be machined. The yellow areas indicate points that cannot be machined and therefore cannot handled by meviy.
Yellow areas can be adjusted or deleted to make an eligible shape.

(2) Closed Pockets

With pockets that are enclosed by 4 faces, concave curves are required on all 4 corners (whether it is a through pocket or blind pocket), as shown in the left image below.
(Because pockets are machined with an end mill, sharp corners are not possible.)

When adding chamfers as in the images below, up to C15 is possible.
(Chamfers above C15 are machined with end mills, so a conical shape like that below is not possible.)

(3) Open Pockets ①

For pockets not surrounded by 4 faces, some shapes can be created without concave curves.

However, curves are required if the pocket is a blind hole. (This is because a curve will always be formed in the machining direction.)

When adding chamfers as in the images below, up to C15 is possible.
For shapes like the image on the right below, an end mill can be used for chamfering, so chamfers above C15 are possible.

Shapes like those below are machined with a chamfer cutter, so a curve like the left or middle images above will be made at the chamfered intersection.

(5) Holes ①

Unlike pockets, multi-directional machining can be used for holes.
It is possible to add multiple smaller holes or a slotted hole in the lower step of a counterbore hole.

(6) Holes ②
Multi-step holes with more than two steps are not possible. As in the left image below, the hole in the middle step must be the narrowest (in order to work with our system). The shapes shown in the middle and right images below (multiple stepped holes or the largest diameter in the middle step) are not possible with meviy.
(7) Slotted Holes ①

As with round holes, multi-directional machining can be used for slotted holes, and counterboring can be used to create multi-stepped holes.

(8) Slotted Holes ②

More than 2 steps are possible.
The middle step cannot be the longest hole, as in the right image below. However, unlike round holes, slotted holes can feature multiple steps that narrow from the top down, as in the middle image below.

(9) Holes + Chamfers or Curves ①

Chamfers around the mouth of a round or slotted hole are possible up to C15.
It is not possible to add convex curves to the rim of round or slotted holes.

(10) Holes + Chamfers or Curves ②

If the corner of a round or slotted hole is curved, the radius of curvature cannot exceed 0.5.

If a corner is C-chamfered or has a radius of curvature below 0.5, the end product may differ from the model. (If adding a curve and chamfer to a counterbore like the left image below, the hole is machined with an end mill, producing a corner that is sharp or within a 0.5 radius of curvature. For a precision or tapped hole with a pilot hole, like the right image below, the hole is machined by a drill, producing an angled surface.)

It is not possible to add a chamfer or curve to an already curved surface.

Material, Surface Treatment and Hanging Holes

  • The following materials and surface treatments are possible.
  • *Depending on shape and size, hanging holes may be necessary for surface treatment. Refer to the Design Guidelines for information on hanging holes.
MaterialSurface TreatmentHanging Holes
Steel
  • EN 1.0038 equiv.
  • EN 1.0038 equiv.(flat bar)
  • EN 1.0038 equiv.(annealed material)
  • EN 1.1191 equiv.(flat bar)
  • EN 1.1206 equiv.
  • EN 1.1206 equiv.(Reference Hardness: 20-27HRC)
No treatment
Black oxide
Electroless nickel plating
Hard chrome plating(Flash Plating)Required
Trivalent chromate (clear)Required
Trivalent chromate (black)Required
Pre-Hardened SteelNAK55 equiv.No treatment
Aluminum
  • EN AW−2017 equiv.
  • EN AW−5052 equiv.
  • EN AW−6061 equiv.
  • EN AW-6063 equiv.(flat bar)
  • EN AW−7075 equiv.
No treatment
Clear anodizeRequired*
Black anodizeRequired*
Black anodize (matte)Required*
Red anodizeRequired*
Gold anodizeRequired*
SUS
  • EN 1.4305 equiv.
  • EN 1.4301 equiv.
  • EN 1.4301 equiv.(flat bar)
  • EN 1.4401 equiv.
  • EN 1.4016 equiv.
No treatment
ResinPOM (Acetal, Standard, white)No treatment
POM (Acetal, Standard, black)
MC Nylon (Standard, blue)
MC Nylon (Standard, ivory)
MC Nylon (Weather resistance, black ash)
Bakelite (Paper, natural color)
Bakelite (Paper, black)
Bakelite (Cloth, natural)
Fluorine(PTFE, Standard, white)
UHMWPE (Standard, white)
UHMWPE (Conductivity, black)
ABS (Standard, natural color)
PEEK (Standard, grey-brown)
  • *Steel between materials EN 1.1191 equiv and EN 1.1203 equiv may be used as an equivalent to EN 1.1206 equiv.
  • *EN 1.0038 equiv.(flat bar) and EN 1.1191 equiv.(flat bar) are not compatible with trivalent chromate.
  • *EN 1.0038 equiv.(annealed material) is not compatible with trivalent chromate (black) or hard chrome plating.
  • *The film thickness of hard chrome plating (flash plating) is less than 5μ. The hardness (Vickers) is about Hv750~, and it is difficult get the plating on holes and pockets.
  • *The value of EN 1.1206 equiv.(Reference Hardness: 20-27HRC) cannot be guaranteed and cannot be specified.
  • *Pre-hardened steel between 37 and 43 HRC may be used as an equivalent to NAK55.
  • *Black anodize (matte) is not applicable for EN AW-6063 equiv.(flat bar).
  • *Thin plate standards (thickness 3㎜≤Z<5㎜)are not applicable for surface treatment.
  • *Not required for anodized aluminum if the displayed agreement is agreed to.
  • (However, a wire mark may be left)
  • *Red and Gold anodizing is currently only available by manual quotation. Automatic quotation solution will be available in Autumn 2024.

Ineligible Shapes

Due to facility limitations, we are unable to provide quotations for parts that require the following machining steps. Thank you for your understanding.

5-axis machining
5-axis machining
Welding
Welding
Wire-cut EDM
Wire-cut EDM
Electrical discharge machining (EDM)
Electrical discharge machining (EDM)
V-groove Machining

Quotable Sizes

Quotable sizes vary depending on the material.
Materials weighing more than 15 kg may have a longer lead time or may not be eligible.
The material weight is X (mm) × Y (mm) × Z (mm) × material density (g/cm3) × 10^(-6) (XYZ are the external dimensions with meviy).

*X ≥ Y ≥ Z

Material and Material Density

MaterialEN 1.0038 equiv.EN 1.0038 equiv.(flat bar)​EN 1.0038 equiv.(annealed material)EN 1.1191 equiv.(flat bar)​EN 1.1206 equiv.EN 1.1206 equiv.(Reference Hardness: 20-27HRC)NAK55 equiv.EN AW−2017 equiv.EN AW−5052 equiv.EN AW−6061 equiv.EN AW-6063 equiv.(flat bar)EN AW−7075 equiv.
  • Material density
  • (g/cm3)
7.877.877.877.877.877.877.82.792.682.72.692.8
MaterialEN 1.4305 equiv.EN 1.4301 equiv.EN 1.4301 equiv.(flat bar)EN 1.4401 equiv.EN 1.4016 equiv.POM (Acetal, Standard, white)POM (Acetal, Standard, black)MC Nylon (Standard, blue)MC Nylon (Standard, ivory)MC Nylon (Weather resistance, black ash)
  • Material density
  • (g/cm3)
7.937.937.937.987.71.411.411.161.161.16
MaterialBakelite (Paper, natural color)Bakelite (Paper, black)Bakelite (Cloth, natural)Fluorine(PTFE, Standard, white)UHMWPE (Standard, white)UHMWPE (Conductivity, black)ABS (Standard, natural color)PEEK (Standard, grey-brown)
Material density(g/cm3)1.41.41.42.20.940.951.051.32

Thickness (Z)

Steel, Stainless steel(Some exceptions: see table below), Aluminum
Z<33≦Z≦7070<Z
IneligibleAutomatic quotationIneligible
EN 1.4401 equiv.
Z<33≦Z≦6868<Z
IneligibleAutomatic quotationIneligible
EN 1.4016 equiv.
Z<33≦Z≦3838<Z
IneligibleAutomatic quotationIneligible
Pre-hardened steel
Z<55≦Z≦7070<Z
IneligibleAutomatic quotationIneligible
EN 1.1206 equiv.(Reference Hardness: 20-27HRC)
Z<55≦Z≦5050<Z
IneligibleAutomatic quotationIneligible
Resin (Some exceptions: see table below)
Z<55≦Z≦6060<Z
IneligibleAutomatic quotationIneligible
MC Nylon (Weather resistance, black ash), MC Nylon (Standard, ivory). Fluorine(PTFE, Standard, white), UHMWPE (Conductivity, black)
Z<55≦Z≦5050<Z
IneligibleAutomatic quotationIneligible
Bakelite (Paper, natural color),Bakelite (Paper, black),Bakelite (Cloth, natural)
Z<55≦Z≦3030<Z
IneligibleAutomatic quotationIneligible

Total Length (X) and Width (Y)

  • Steel(mm)
  • without surface treatment
Width Y
Y<1010≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100
  • Automatic quotation
100<X≦500
500<X≦600
600<X
Thin plate standards (Thickness 3㎜≦Z<5㎜)
  • Steel(mm)
  • without surface treatment
Width Y
Y<55≦Y≦1010<Y≦5050<Y≦100100<Y
Total Length XX<5
5≦X≦10
  • Automatic quotation
10<X≦50
50<X≦100
100<X
  • Steel(mm)
  • with surface treatment
Width Y
Y<1010≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100Automatic quotation
100<X≦500
500<X≦600
600<X
  • Stainless steel(mm)
  • without surface treatment
Width Y
Y<105≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100
  • Automatic quotation
100<X≦500
500<X≦600
600<X
Thin plate standards (Thickness 3㎜≦Z<5㎜)
  • Stainless steel(mm)
  • without surface treatment
Width Y
Y<55≦Y≦1010<Y≦5050<Y≦100100<Y
Total Length XX<5
5≦X≦10
  • Automatic quotation
10<X≦50
50<X≦100
100<X
  • EN 1.1206 equiv.(Reference Hardness: 20-27HRC)(mm)
  • without surface treatment
Width Y
Y<1010≦Y≦200200<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦250Automatic quotation
250≦X≦500
500<X≦600
600<X
  • Pre-Hardened Steel(mm)
  • without surface treatment
Width Y
Y<1010≦Y≦200200<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦300Automatic quotation
300<X≦500
500<X≦600
600<X
  • Aluminum(mm)
  • without surface treatment
Width Y
Y<105≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100
  • Automatic quotation
100<X≦500
500<X≦600
600<X
Thin plate standards (Thickness 3㎜≦Z<5㎜)
  • Aluminum(mm)
  • without surface treatment
Width Y
Y<55≦Y≦1010<Y≦5050<Y≦100100<Y
Total Length XX<5
5≦X≦10
  • Automatic quotation
10<X≦50
50<X≦100
100<X
  • Aluminum(mm)
  • with surface treatment
Width Y
Y<1010≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100Automatic quotation
100<X≦500
500<X≦600
600<X
  • Resin(mm)

Width Y
Y<1010≦Y≦100100<Y≦300300<Y≦400400<Y
Total Length XX<10
10≦X≦100Automatic quotation
100<X≦500
500<X≦600
600<X

Flat bar

Flat Bar (Common): X dimension 10≦X≦500
EN 1.0038 equiv.(flat bar)​ Width Y
Total Length X 5 16 19 22 25 32 38 44 50
6 16 19 22 25 28 32 38 40 44 45 50 60 65 75 90 100 125
8 16 19 22 25 30 32 38 50
9 16 19 22 25 32 38 44 45 50 60 65 75 90 100 125
10 10 15 16 20 22 25 30 32 38 40 50 60 65 75 90 100 125
12 12 16 19 20 22 25 32 38 44 45 50 60 65 75 90 100 125
16 16 19 20 22 25 32 38 44 45 50 60 65 75 90 100 125
19 19 22 25 32 38 44 45 50 60 65 75 90 100 125
22 22 25 32 38 44 50 60 65 75 90 100 125
25 25 32 38 44 45 50 60 65 75 90 100 125
30 30 50 65 75 100 125
EN 1.1191 equiv.(flat bar)​ Width Y
Total Length X 5 16 19 22 25 32
6 16 19 22 25 32 38 44 50 60 65 75 90 100 125
9 16 19 22 25 32 38 44 50 60 65 75 90 100 125
12 12 16 19 22 25 32 38 44 50 60 65 75 90 100 125
16 16 19 22 25 32 38 44 50 60 65 75 90 100 125
19 19 22 25 32 38 44 50 60 65 75 90 100 125
22 22 25 32 38 44 50 65 75 100 125
25 25 32 38 44 50 60 65 75 90 100 125
30 30 50 65 75 100 125
EN 1.4301 equiv.(flat bar) Width Y
Total Length X 5 15 16 19 20 22 25 30 32 35 38 40 50 60 65 75 90 100
6 15 16 19 20 22 25 30 32 35 38 40 45 50 60 65 75 90 100 125
8 16 32 38 50
9 15 16 19 20 22 25 32 38 40 50 60 65 75 90 100 125
10 10 15 19 20 25 30 32 38 40 50 65 75 100 125
12 12 16 19 20 25 30 32 38 40 50 65 75 90 100 125
16 16 19 20 25 32 38 40 50 65 75 100 125
19 19 25 32 38 50 65 75 100 125
22 22 32 38 50 65 75 100
25 25 32 38 50 65 75 100 125
30 30 50 65 75 100
EN AW-6063 equiv.(flat bar) Width Y
Total Length X 5 15 20 30 40 50 60 100
6 15 20 30 40 50 60 100
8 15 20 30 40 50 60 100
10 10 15 20 30 40 50 60 100
12 12 15 20 30 40 50 60 100
15 15 20 30 40 50 60 100
20 20 30 40 50 60 100
25 25 30 40 50 60 100
30 30 40 50 60 100

Shape Disparity between 3D Model and Finish

In general, the product will be true to the 3D CAD data. However, in the following cases, there may be differences between the 3D CAD data and the actual product.

Internal/External Sharp Corners

  • If an external corner is sharp or is less than C0.5, the finish will be as follows:

    · External corner C0.1 to 0.5 or less

    For internal sharp corners, the finish will be as follows:

    · Internal corner R0.1 to R0.5 or less

The bottom shape of the blind hole

  • Even if the bottom of the model is flat, the finished product may be a cone shape due to processing characteristics, and vice versa. This may cause the hole to penetrate, interfere with other shape elements, deform, or bulge.
  • If not acceptable, please fill the comment field of hole information instructions with “hole diameter(Φ), depth, flat bottom” and request a manual quotation from meviy support. We will shortly provide you a formal quotation.

Pilot Hole for Tapped/Precision Hole

The pilot-hole depth may not be machined exactly as shown in the model, and if the effective depth (h) exceeds the reference value [model depth minus pilot-hole remaining depth] the pilot hole may penetrate through and interfere with other shape elements.

The pilot-hole diameter may also not be machined exactly as shown in the model.

Pilot hole for tapped/precision hole
Pilot-hole depth reference value = pitch × 2.5 + 2 mm
Pilot hole for tapped/precision hole
Pilot-hole remaining depth reference value = 2.7 mm

Points of Note when 3D Modeling
