Material, Surface Treatment, Size

Material: Ferrous Metals	Surface Treatment	Plate Thickness *1	External Dimensions (Length, Width, Height) *2
Material: Ferrous Metals	Surface Treatment	Plate Thickness *1	Plate Thickness ≤2.0 mm	Plate Thickness >2.0 mm
EN 1.0330 equiv. (EN 1.0320 equiv. (hot coiled)) EN 1.0038 equiv. (9-mm Plate Thickness Only)	–	0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0, 9.0	5–1200	10–1200
	Paint *3	0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0	5–1200	10–1200
	Electroless Nickel Plating	0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0, 9.0	5–1200 *4	10–1200*4
	Black Oxide
	Trivalent Chromate (clear)
	Trivalent Chromate (Black)	0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2, 4.5, 6.0	5–300	10–300
EN 1.0038 equiv.	–	10.0, 12.0, 16.0	–	20-1200
EN 1.0330 equiv. (Electrolytic Zinc Plating)	Electrolytic Plating *5	0.8, 1.0, 1.2, 1.6, 2.0, 2.3, 3.2	5–1200	10–1200
EN 1.0330 equiv.	Galvanized *5	1.6, 2.3	5–1200	10–1200
EN 1.0330 equiv. (for Shims) *6	–	0.1, 0.2, 0.3, 0.5	Horizontal (long-side) 5–850 Width (short-side) 5–300	–

Material: Stainless Steel	Finishing Method	Plate Thickness *1	External Dimensions (Length, Width, Height) *2
Material: Stainless Steel	Finishing Method	Plate Thickness *1	Plate Thickness ≤2.0 mm	Plate Thickness >2.0 mm
EN 1.4301 equiv.	No.1	9.0	—	10-1200
	No.1	10.0, 12.0	—	20-1200
	2B	0.8, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0	5–1200	10–1200
	Single-Sided #400-Grit Polished *7	0.8, 1.0, 1.2, 1.5, 2.0, 3.0
	Single-sided hairline finish 7 8	0.8, 1.0, 1.2, 1.5, 2.0, 3.0
EN 1.4016 equiv.	2B	0.8, 1.0, 1.2, 1.5, 2.0, 3.0
EN 1.4301 equiv. (for Shims) *6	—	0.05, 0.1, 0.2, 0.3, 0.5, 0.8, 1.0	Horizontal (long-side) 5–850 Width (short-side) 5–300	—

Material: Aluminum	Surface Treatment	Plate Thickness *1	External Dimensions (Length, Width, Height) *2
Material: Aluminum	Surface Treatment	Plate Thickness *1	Plate Thickness ≤2.0 mm	Plate Thickness >2.0 mm
EN AW−5052 equiv.	—	0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0	5～920	10～920
	Anodized (clear)	0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0	5–920 *4	10–920 *4
	Anodized (Black)	0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0	5–920 *4	10–920 *4
	Anodize (matt black)　*11	0.8 1.0 1.2 1.5 2.0 2.5 3.0 （4.0 5.0 6.0）	5～920 *4	10～920 *4

Material: Perforated Metal	Hole Diameter × Hole Pitch *9	Open Area Ratio	Plate Thickness *1	External Dimensions (Length, Width, Height) *2
Perforated Metal (EN 1.4301 equiv.-BA); —60° Staggered Round Hole Type—	ø1 × 2p	22.6%	0.8	30–900
	ø2 × 3p	40.3%	1.0
	ø3 × 5p	32.7%	1.0, 1.5
	ø5 × 8p	35.4%	1.0, 1.5
	ø8 × 12p	40.2%	1.5

Material: Clear Resin *10	Grade	Color	Plate Thickness *1	External Dimensions
Material: Clear Resin *10	Grade	Color	Plate Thickness *1	Width (Short-Side)	Horizontal (Long-Side)
PET (Polyethylene Terephthalate)	Standard	Clear	3.0 5.0 8.0	10～1000	10～2000
	Standard	Brown Smoke
	Anti-Static	Clear
	Anti-Static	Brown Smoke
Acrylic	Standard	Clear	3.0 5.0	10～1000	10～2000
	Standard	Brown Smoke
	Anti-Static	Clear
	Anti-Static	Brown Smoke
Polycarbonate	Standard	Clear	3.0 5.0 8.0 10.0	10～1000	10～2000
	Standard	Brown Smoke
	Anti-Static	Clear
	Anti-Static	Brown Smoke
PVC (polyvinyl chloride)	Standard	Clear	3.0 5.0	10～1000	10～2000
	Standard	Smoky brown
	Anti-Static	Clear
	Anti-Static	Smoky brown

*1 Excluding shim material and transparent resin. The plate thickness tolerance is ±10% (reference value).
*2 The maximum and minimum dimensional values are limited by the shape of the model.
*3 Select a paint color from the table (Appendix Table).
*4 Upper dimensions for length, width, and height (refer to the attached table) vary depending on the material, plate thickness, and surface treatment.
*5 The machining surface will not be plated as it is a pre-treatment material.
*6 Shim plate materials can only be used with flat plate parts. For more information, see “Parts Eligible for Thin Shim Plates.”
*7 Protective sheets (one-side only) affixed.
*8 For more information about hairline direction, please see “Hairline Direction“.

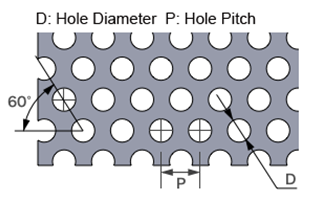

*9 See figure below for hole diameter and hole pitch standards. However, the hole pitch orientation can be set to any value.

*10 Can only be used with flat plate parts. For more information, see “Parts Eligible for Clear Resin.”
*11 Matt black anodize of 4.0 mm or more is only available for flat plate parts.
*12 The upper limit was added in 2023/04.

(Appendix Table) Size limit including surface treatment	External Dimensions (Maximum)
(Appendix Table) Size limit including surface treatment	Length	Width	Height
Electroless Nickel Plating	1200	800	300
Black Oxide
Trivalent Chromate (White)
EN AW−5052 equiv. (Without surface treatment)	1200	920	920
Anodized (White)		600	400
Anodized (Black)		600	400
Anodize (matt black)	1100	600	400
