Winkelmaße und Winkeltoleranzen hinzufügen/löschen

Add angular dimensions and angular tolerances

1.Click

and click the two ‘surfaces’ to which you want to add dimensions.

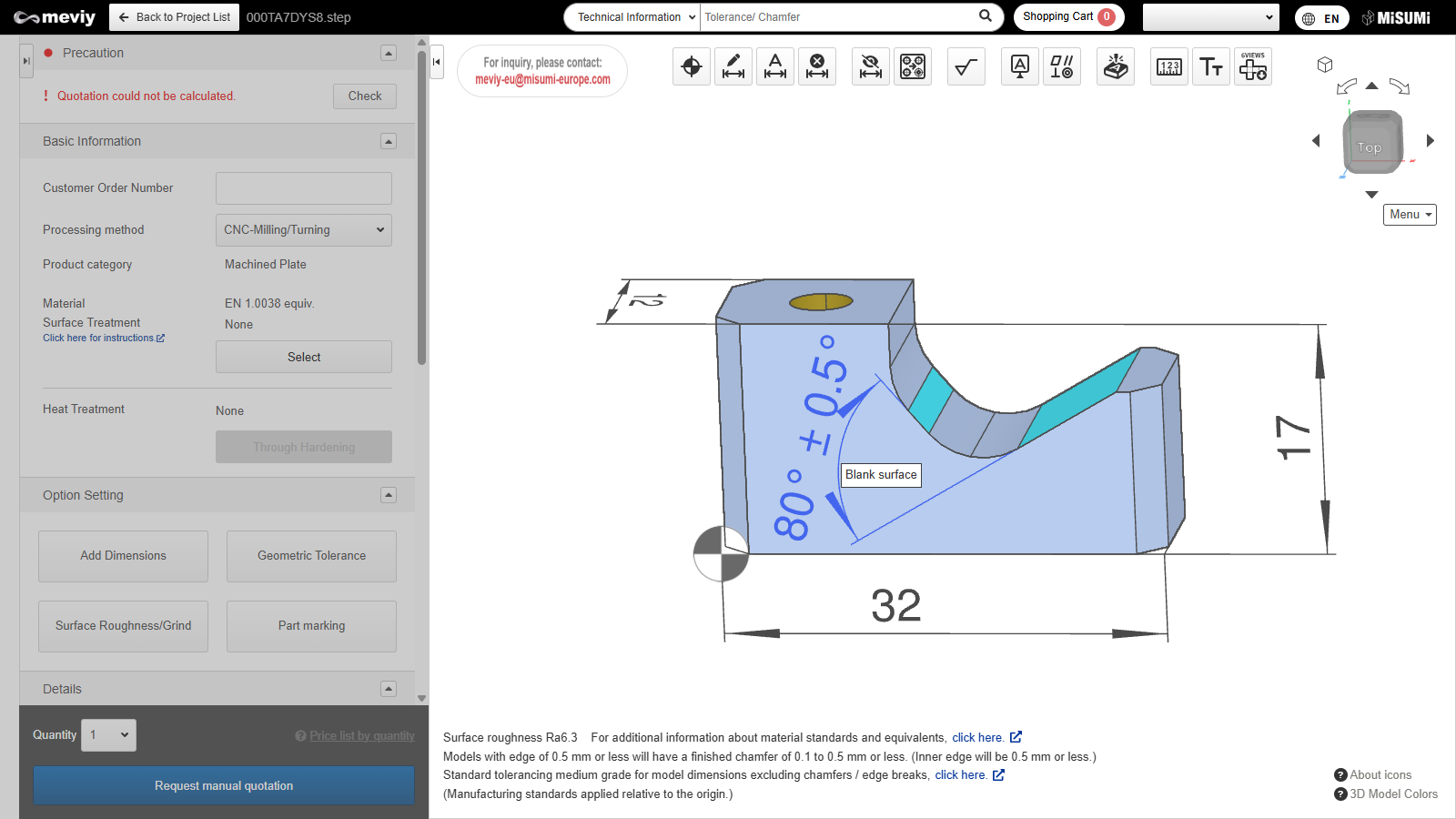

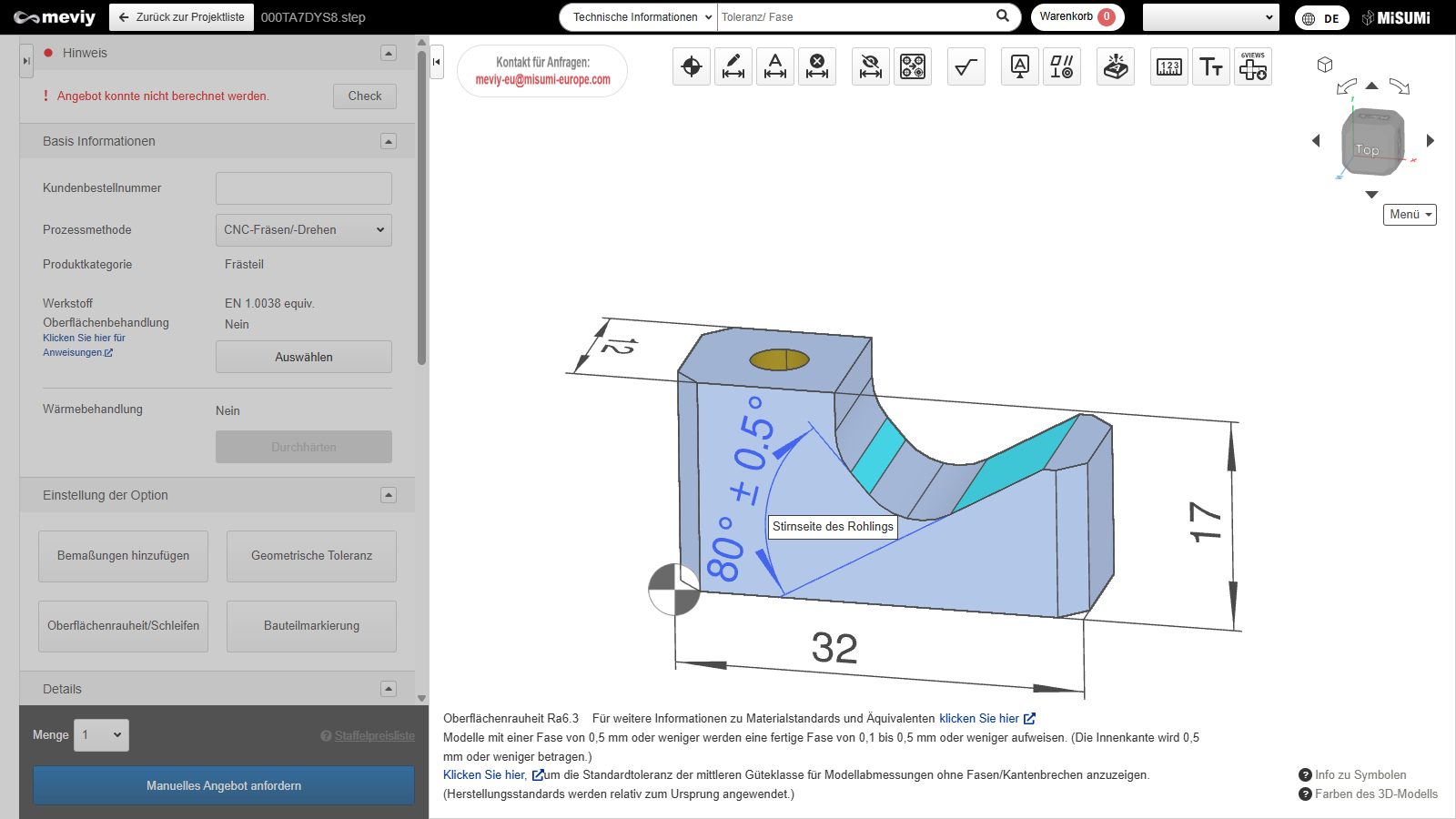

2. Click where you want to display the dimensions.

Notes

Even if you press

, angular dimensions will not be added.

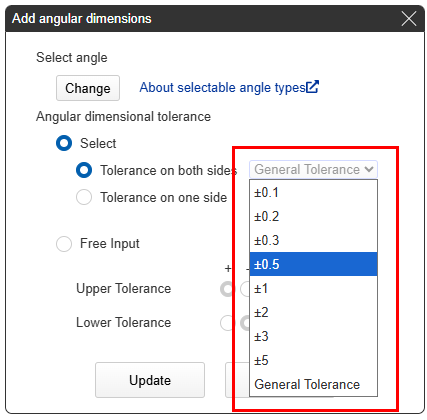

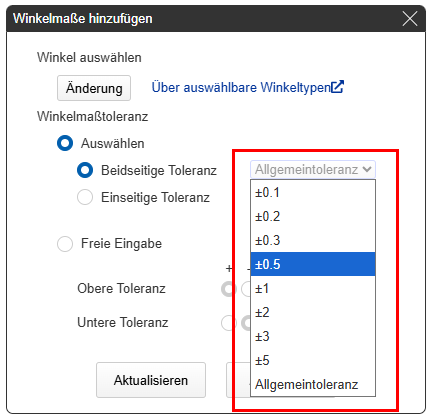

3. Select the angular tolerance value you want to set from the pull-down menu.
If you do not have a desired tolerance, please specify it in the ‘Free input’ field.

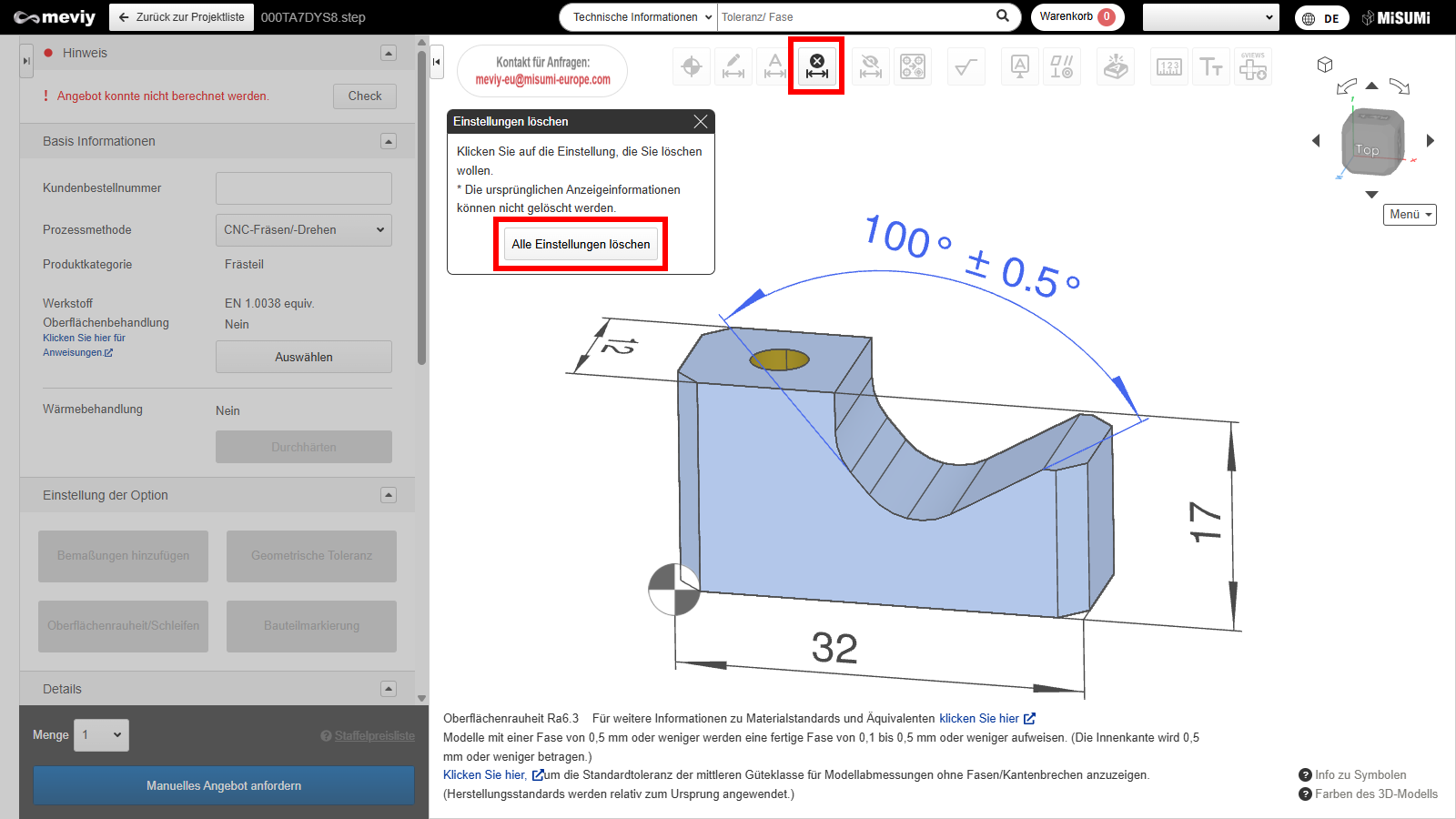

If you accidentally add dimensions or if dimensions are no longer needed, you can delete them.

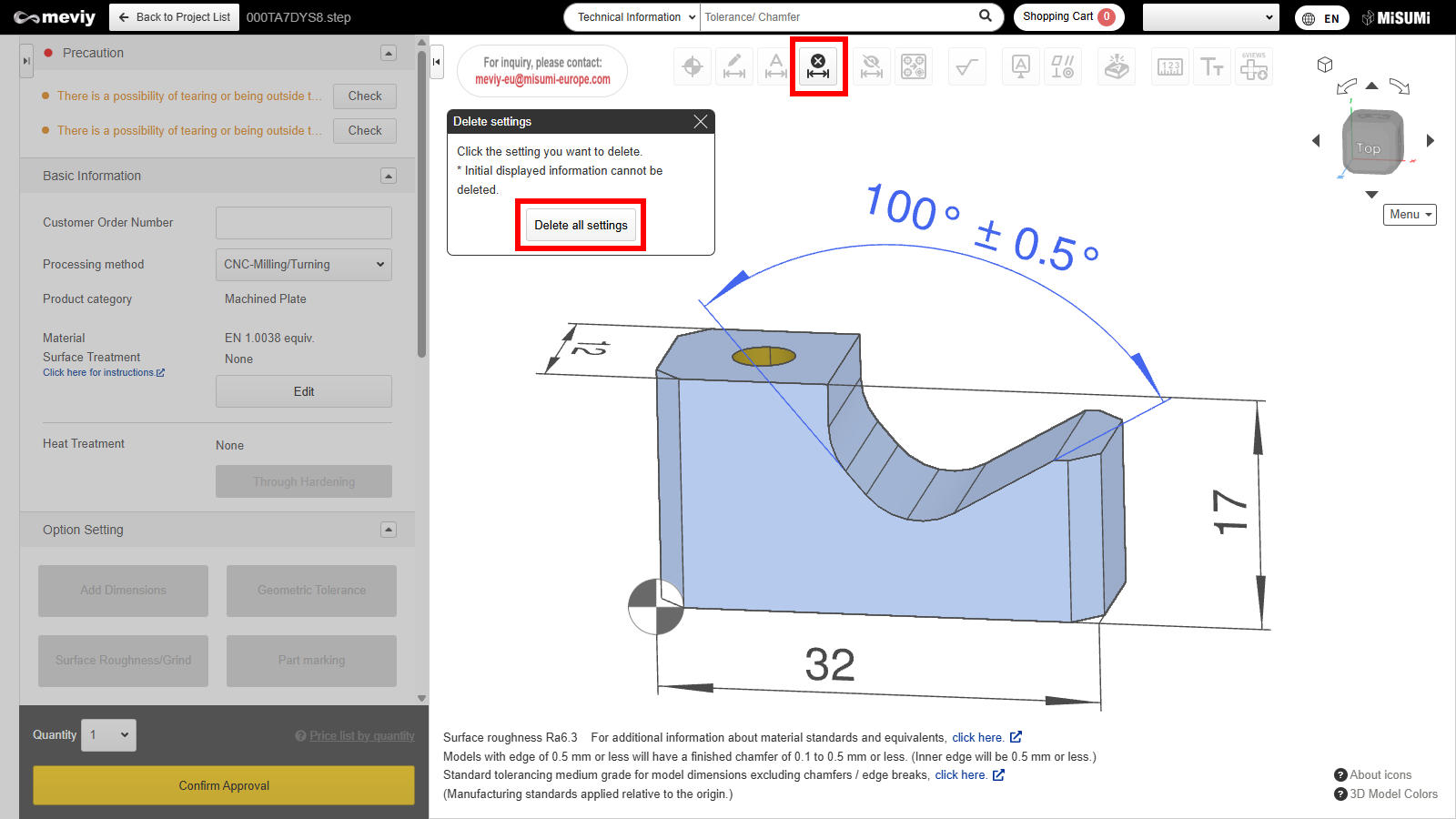

Click , then click the dimension you want to delete.

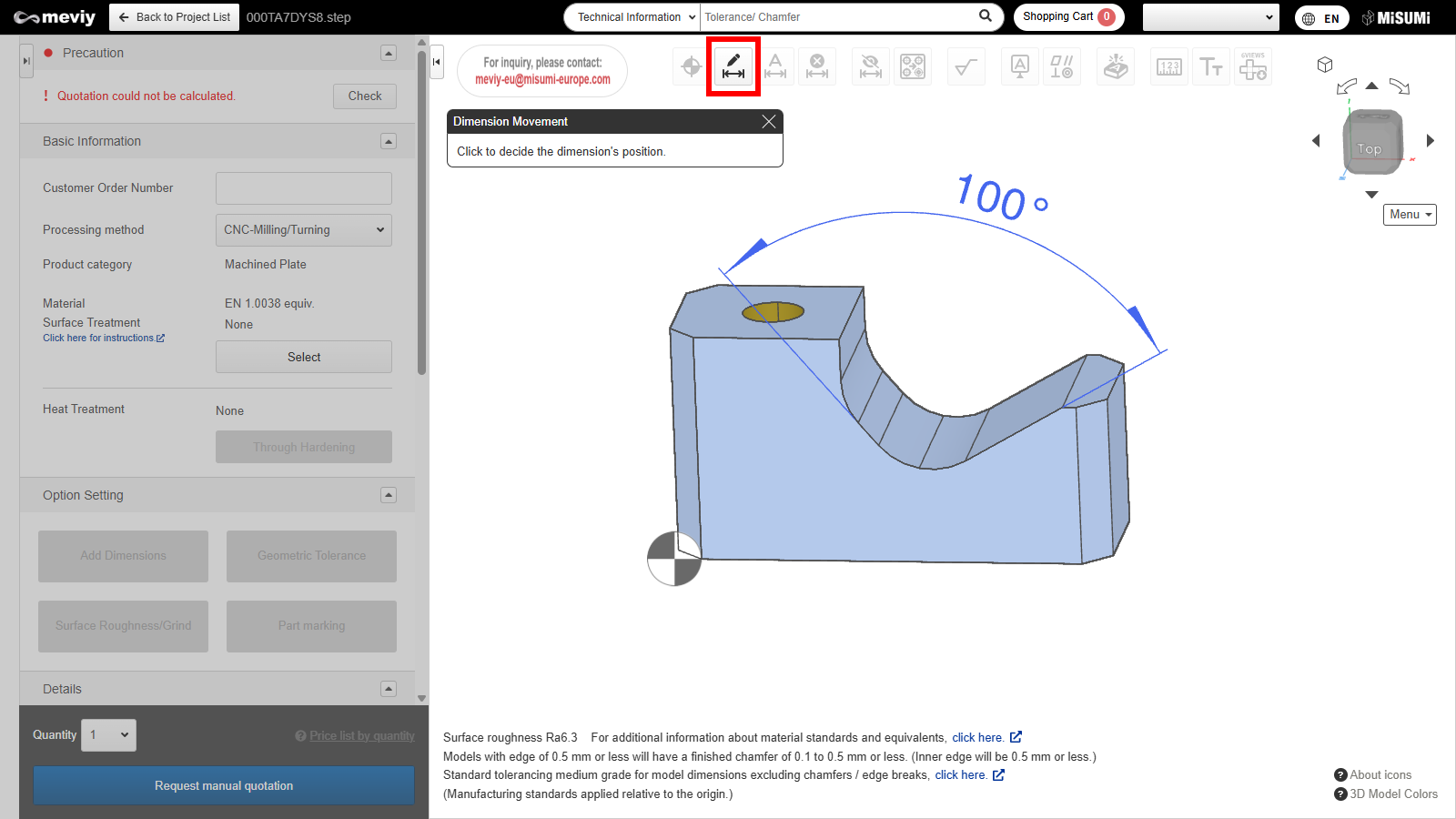

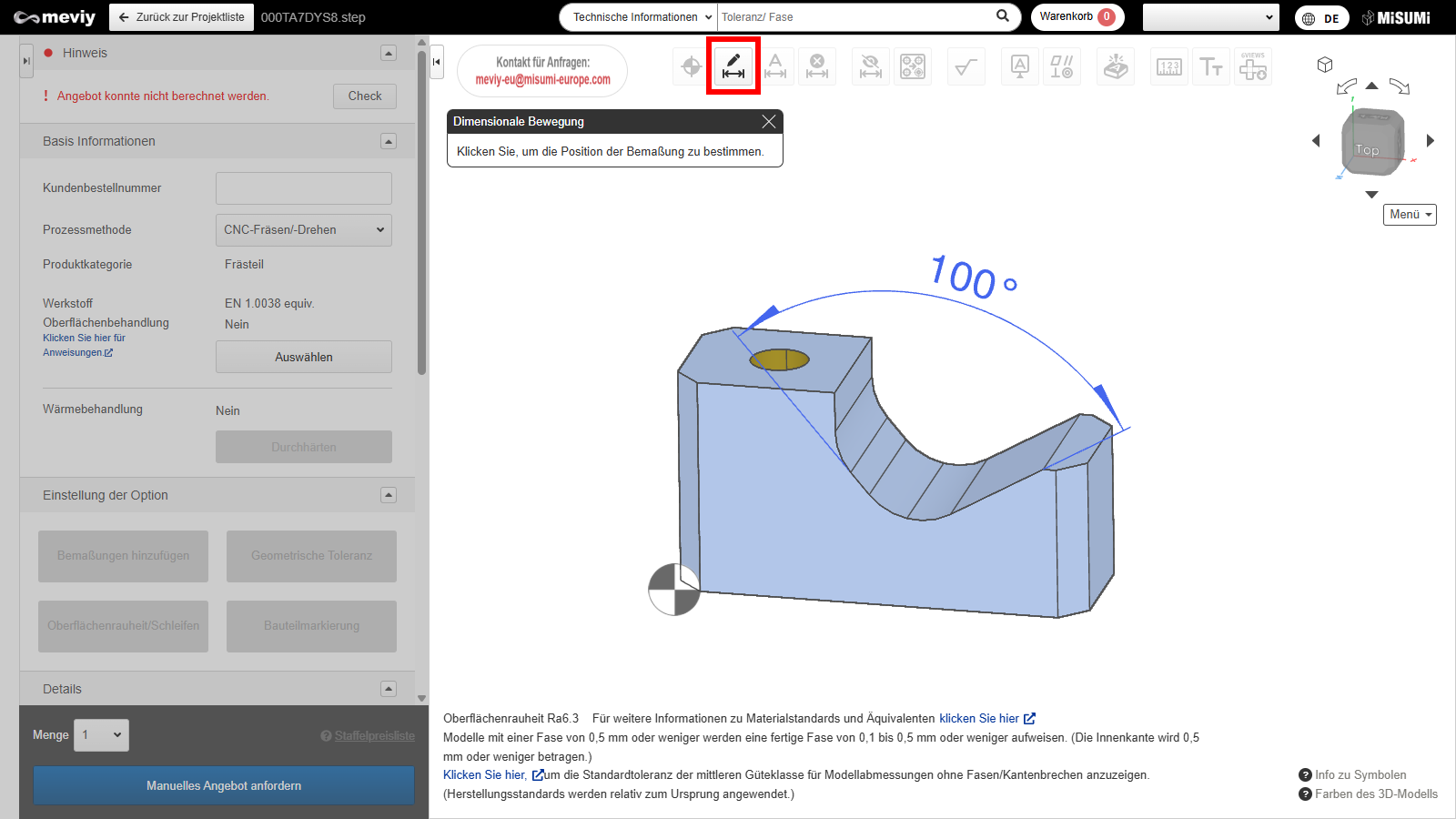

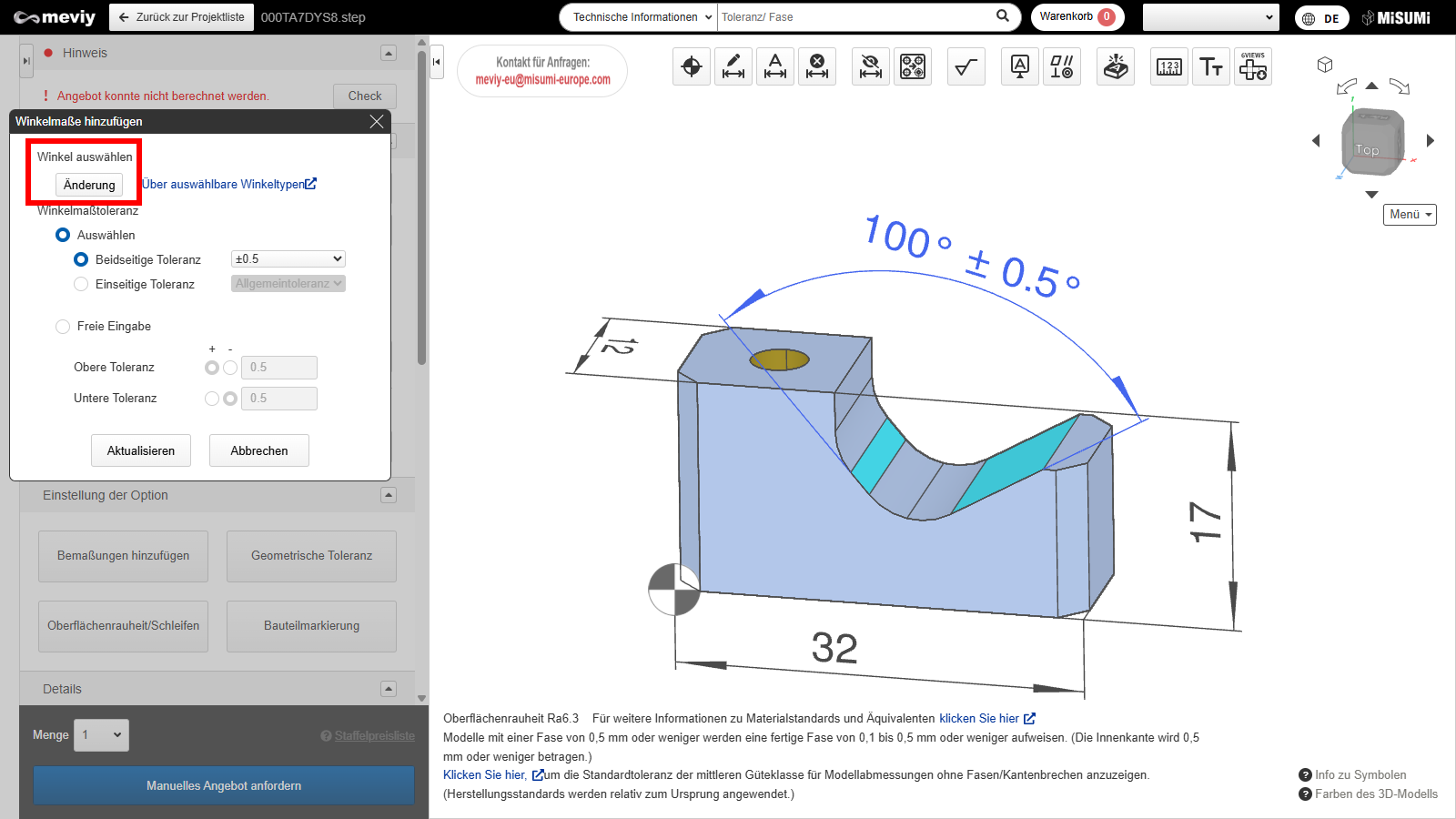

If you want to change the viewing angle after the dimension is placed, you can choose again.

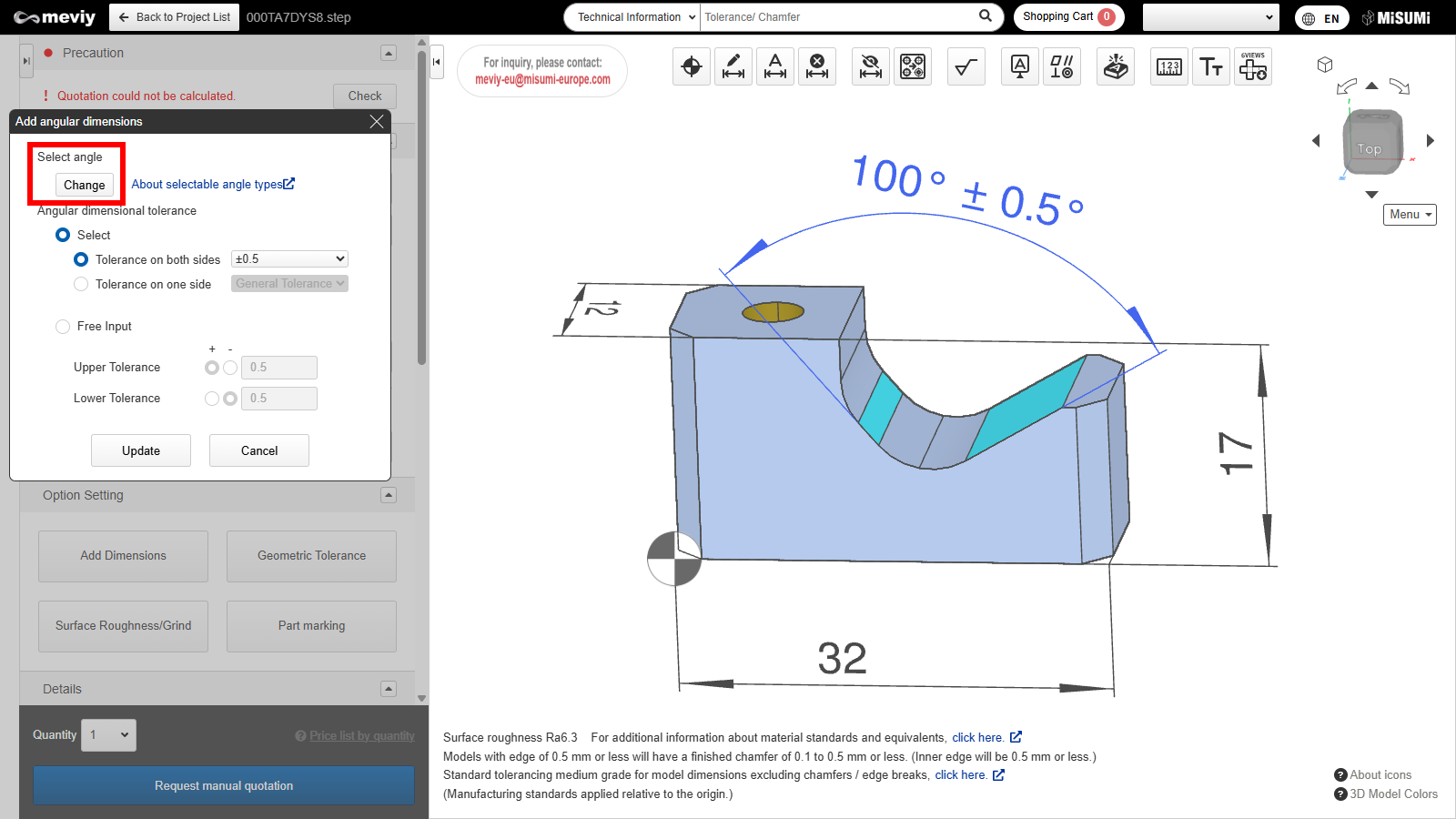

1. Click on below ‘Reselect angle’.

Once again, you will be able to select the position of the dimensions you want to display.

2. Click the position of the angular dimension you want to set.
