Confirming Approvals

If there is a possibility that welding may be difficult, a message (agreement item) will be displayed in the precaution. If you select [Accept] on the approval message, you will be able to use the automatic quotation function. However, if you select [Decline], the automatic quotation function will not be available.

Confirming Approvals

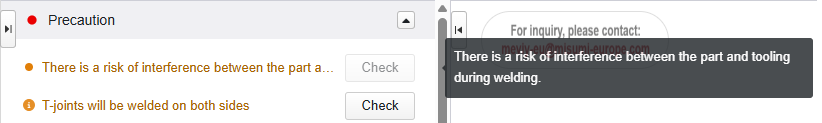

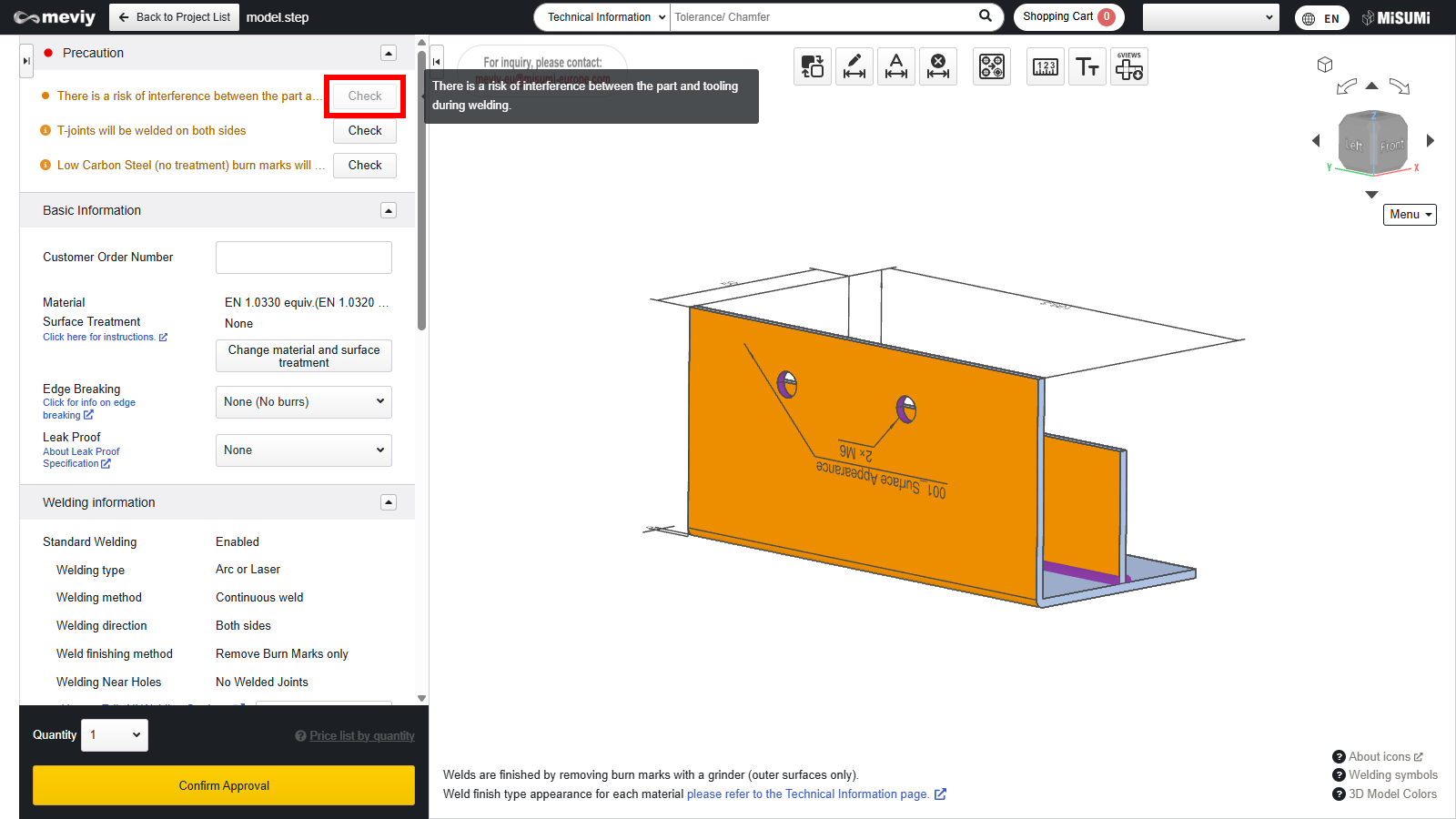

When you click a message in the precaution, the affected area will be highlighted in the 3D Viewer.
Hover over the message to see the details.

Selecting [ Accept ] or [ Decline ] on Approval Messages

  1. １． Click the message in the precaution.

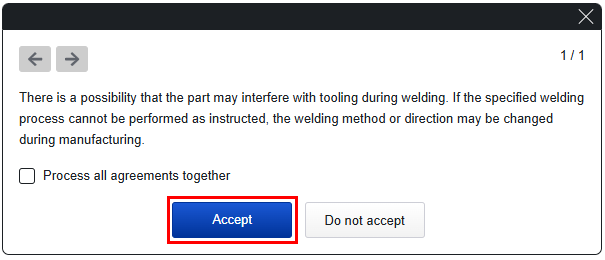

    The Approval Message dialog box will then be launched.
  2. ２．Select [ Accept ] or [ Decline ].
    ・You can also process all approval messages in one go.
    ・If you select [ Accept ] for all approval messages, you will be able to use the [ Finalize Quote ] button.

Tip

If you decline an approval message, you will still be able to request a quote from meviy support.
